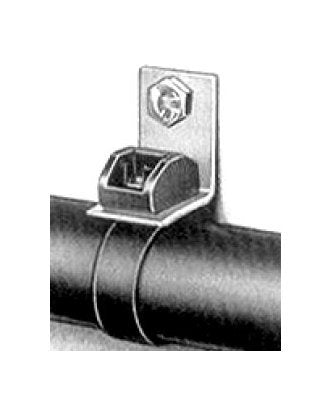

The DELTEC® Nylon Mounting Base is an integral component of the DELTEC® Cable Support System, designed to secure various aerial cables to surfaces with durability and efficiency. Constructed with a Dupont DELRIN strap and a marine-grade corrosion-resistant copper alloy locking device, this mounting base offers superior resistance to environmental factors, ensuring a long-lasting and reliable cable installation solution. With an installation temperature range of -30 to 150 degrees Fahrenheit, a minimum tensile strength of 250 pounds, and a maximum recommended load of 20 pounds, this system guarantees years of dependable service and cost savings. Its user-friendly design, high tensile strength, and flexibility make installation easy and efficient, meeting the diverse needs of aerial cable applications.
Product Specifications
Advantages
Provides years of dependable service.No sharp edges when installed with the WT3D Ty-Rap installation tool.Ease of installation.Lowers installation costs.High tensile strength and flexibility.1/2" stackable spacers meet all size requirements and eliminate the stocking of multiple size spacers.
Quick Easy Installation

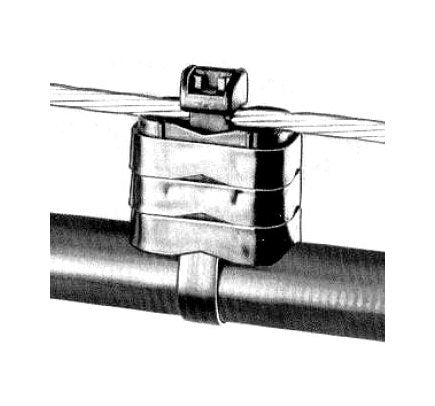

Position spacers, as required, between strand and cable or between cables.Hold head of DELTEC® tail through spacer, around cable, up through other side of spacer and into other side of the head.Pull snug and use WT3D tool to pull strap up tight and cut tail flush with locking head.
Specifications Installation Range F
-30 to 150
Specifications Length In
1.125
Specifications Locking Device
Marine grade corrosion-resistant copperalloy
Specifications Max Recommended Load Lb
20
Specifications Min Tensile Strength Pound
250
Specifications Mounting Method
#8 screw 0.750
Specifications Outdoor Life
Designed to last a minimum of 20 years
Specifications Std Pkg
250
Specifications Strap And Body
Dupont DELRIN. Offers superior resistance to sunlight, moisture, salt environments
Specifications Unit Qty
25
Specifications Width In
0.750
