Derated Triple Metal Heater - 9000W, 480V
Derated Triple Metal Heater - 9000W, 480V
SKU:HEA-738750
Powerful 9000W Derated Triple Metal Heater for industrial heating solutions. Chemical-resistant with cULus certification.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
Derated Triple Metal Heater - 9000W, 480V
$749.99
Quantity: 1
Claim Your Seller Account
Derated Triple Metal Heater - 9000W, 480V
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

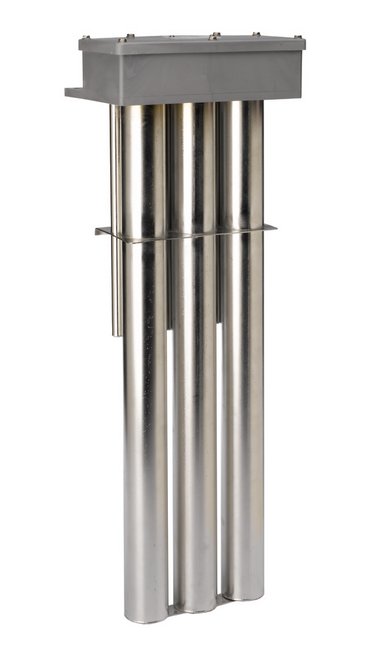

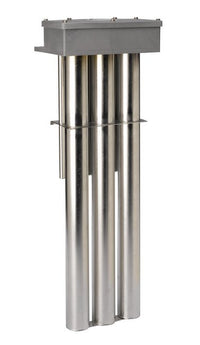

The D3 Series Derated Triple Metal Heater, manufactured by Process Technology, offers exceptional performance for institutional and industrial applications. Made of 316 Stainless Steel, this heater boasts 9000W power output, suitable for single or three-phase systems. Featuring superior chemical resistance and rugged construction, it ensures long service life and safety. With certifications including cUL US Listed, this heater is a reliable choice for heating solutions up to 300°F. Explore various options such as thermal protectors and special configurations to meet your specific requirements.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE:For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:Steel.304 stainless steel.316 stainless steel.Titanium.OUTSTANDING PERFORMANCE:Watt densities up to 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protectors built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 1,500 watts to 18,000 watts.VOLTAGES:120 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C)P5:for solutions up to 300°F (149°C)Resettable thermal protectors:P2: for solutions up to 180°F (82°C)P6: for solutions up to 230°F (110°C)P7: for solutions up to 300°F (149°C)Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Specifications Certifications
cUL US Listed
Specifications Hot Zone
30 " | 762 mm
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Overall Length
40 " | 1016 mm
Specifications Phase
Single | Three
Specifications Shipping Weight
51.0 Pound
Specifications Volts
480 V
Specifications Watts
9000 W
Specifications Weight
51.0 lbs | 23.1 kg
