Destaco 25 lb Left Swing Power Clamp
Destaco 25 lb Left Swing Power Clamp
SKU:POW-a699e1
Secure and efficient Destaco 25 lb Left Swing Power Clamp for precise industrial clamping applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Destaco 25 lb Left Swing Power Clamp
$149.99
Quantity: 1
Claim Your Seller Account
Destaco 25 lb Left Swing Power Clamp
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

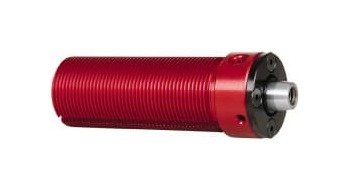

The Destaco 25 lb Left Swing Power Clamp is a high-quality double-acting pneumatic swing clamp designed for precision and efficiency. With a 21.59mm total stroke and 10-32 port size, it provides a secure clamping force suitable for a variety of applications. This clamp features a sturdy body measuring 72.9mm in length and 31.8mm in width, ensuring durability and reliability. Operating at a maximum pressure of 130 psi, this clamp is ideal for industrial settings where robust clamping power is essential. Compliant with industry standards, the Destaco Power Clamp is a dependable choice for both consumer and institutional buyers.
Product Specifications
Body Dimensions Body Length
72.9 mm
Body Dimensions Body Width
31.8 mm
Technical Specs Brands
Destaco
Technical Specs Clamping Force
25 lb
Technical Specs Manufacturer Part Number
8016-LA
Technical Specs Maximum Operating Pressure
130 psi
Technical Specs Minimum Order
1
Technical Specs Number Of Packages
1
Technical Specs Operating Volume Clamp
4.1 cm³
Technical Specs Swing Clamp Port Size
10-32
Technical Specs Swing Direction
Left
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Total Stroke
21.59 mm
Technical Specs Unspsc Code
23153000
Technical Specs Upc Code
697437580184
