Destaco 25lb Right Swing Power Clamp
Destaco 25lb Right Swing Power Clamp
SKU:POW-1596da
Achieve precision and efficiency with the Destaco 25lb Right Swing Power Clamp. Perfect for industrial applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Destaco 25lb Right Swing Power Clamp
$249.99
Quantity: 1
Claim Your Seller Account
Destaco 25lb Right Swing Power Clamp
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

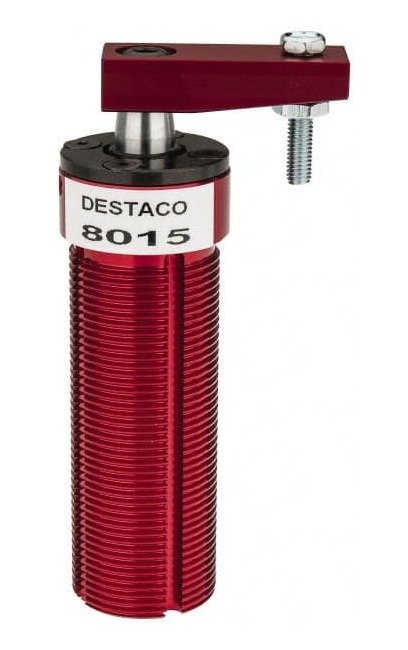

The Destaco 25lb Right Swing Power Clamp is a top-tier solution designed for precision clamping tasks. With a clamping force of 25 lbs and a 21.59mm total stroke, this double-acting pneumatic swing clamp ensures secure and swift operations. Featuring a right-hand swing direction and a 10-32 port size, this clamp offers versatility and ease of use. The body dimensions of 72.9mm length and 31.8mm width ensure durability and stability. Operating at a maximum pressure of 130 psi and an operating volume of 4.1 cm³, this power clamp is a reliable choice for various industrial applications.
Product Specifications
Body Dimensions Body Length
72.9 mm
Body Dimensions Body Width
31.8 mm
Technical Specs Brands
Destaco
Technical Specs Clamping Force
25 lb
Technical Specs Manufacturer Part Number
8015
Technical Specs Maximum Operating Pressure
130 psi
Technical Specs Minimum Order
1
Technical Specs Number Of Packages
1
Technical Specs Operating Volume Clamp
4.1 cm³
Technical Specs Swing Clamp Port Size
10-32
Technical Specs Swing Direction
Right
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Total Stroke
21.59 mm
Technical Specs Unspsc Code
23153000
Technical Specs Upc Code
697437580153
