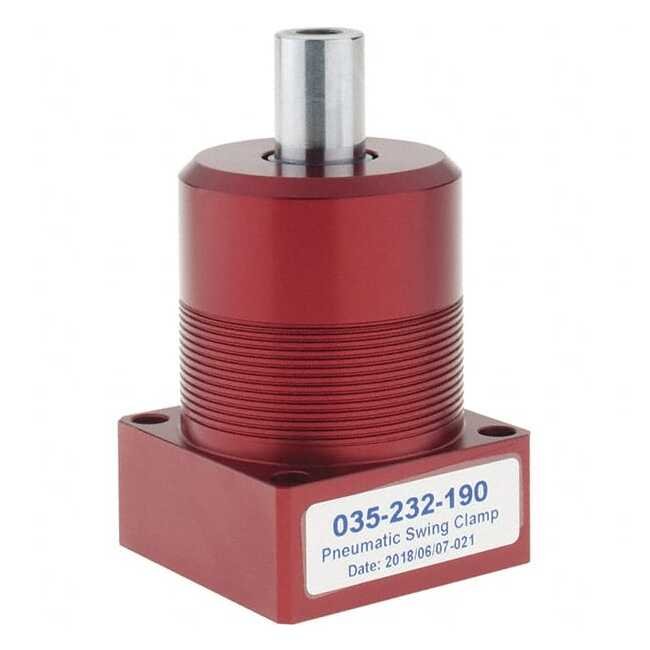

Destaco 40 lb Right Swing Power Clamp
Destaco 40 lb Right Swing Power Clamp
SKU:POW-508158
Precision swing clamp with 40 lb clamping force, 70.87mm body length, and 32mm body width for secure industrial applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Destaco 40 lb Right Swing Power Clamp
$249.99
Quantity: 1
Claim Your Seller Account
Destaco 40 lb Right Swing Power Clamp
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Destaco 40 lb Right Swing Power Clamp is a high-performance double-acting pneumatic clamp designed for precision industrial applications. With a reliable clamping force of 40 lb, a 70.87mm body length, and a 32mm body width, this swing clamp ensures secure and efficient operation. It features a 26.92mm total stroke, a 10-32 port size, and operates at a maximum pressure of 100 psi. The National Pipe Thread (NPT) thread type and right swing direction enhance ease of use and flexibility. Ideal for institutional and government buyers seeking quality, reliability, and compliance.
Product Specifications
Body Dimensions Body Length
70.87 mm
Body Dimensions Body Width
32 mm
Technical Specs Brands
Destaco
Technical Specs Clamping Force
40 lb
Technical Specs Manufacturer Part Number
035-232-190
Technical Specs Maximum Operating Pressure
100 psi
Technical Specs Minimum Order
1
Technical Specs Number Of Packages
1
Technical Specs Operating Volume
0.99 in³
Technical Specs Swing Clamp Port Size
10-32
Technical Specs Swing Direction
Right
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Total Stroke
26.92 mm
Technical Specs Unspsc Code
23153000
