Destaco 7.85 Inch Pneumatic Swing Power Clamp
Destaco 7.85 Inch Pneumatic Swing Power Clamp
SKU:POW-591167
Upgrade your clamping solutions with the Destaco 7.85 Inch Pneumatic Swing Power Clamp. Designed for precision and efficiency.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Destaco 7.85 Inch Pneumatic Swing Power Clamp
$349.99
Quantity: 1
Claim Your Seller Account
Destaco 7.85 Inch Pneumatic Swing Power Clamp
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

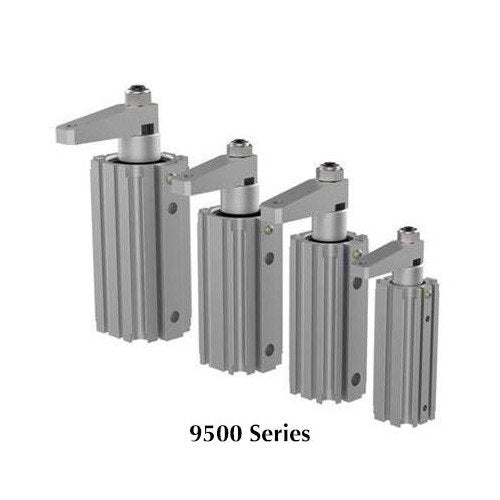

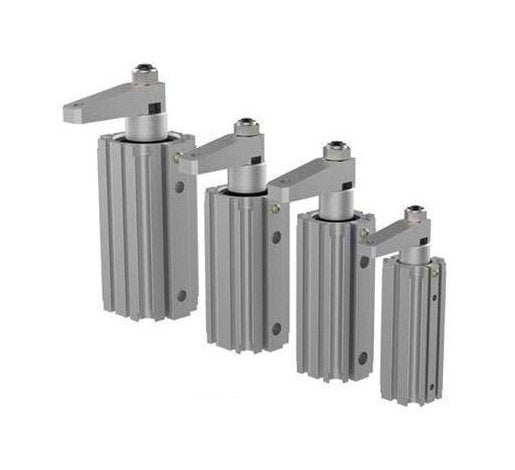

The Destaco 7.85 Inch Pneumatic Swing Power Clamp from the 9500 Series is designed for flexible mounting options and features a larger bore for increased efficiency. With a unique design that allows the clamp arm to swing 90° on a horizontal plane before moving downward on its clamping stroke, this clamp offers precision and reliability. The shielded piston rod provides protection from weld spatter, ensuring durability in industrial settings. With a clamp force of 196 lb at 87 PSI pressure, this clamp is ideal for various applications in manufacturing and assembly processes.
Product Specifications
Technical Specs Base Width
2.52 in
Technical Specs Brands
Destaco
Technical Specs Clamping Stroke
0.79 in
Technical Specs Clamp Force At 87 Pounds Per Square Inch Psi Pre
196 lb
Technical Specs Height
7.85 in
