Destaco 70 Lb Pneumatic Power Clamp
Destaco 70 Lb Pneumatic Power Clamp
SKU:POW-d2b36d
Experience precision clamping with the Destaco 70 Lb Pneumatic Power Clamp. Ideal for efficient and secure clamping operations.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Destaco 70 Lb Pneumatic Power Clamp
$149.99
Quantity: 1
Claim Your Seller Account
Destaco 70 Lb Pneumatic Power Clamp
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

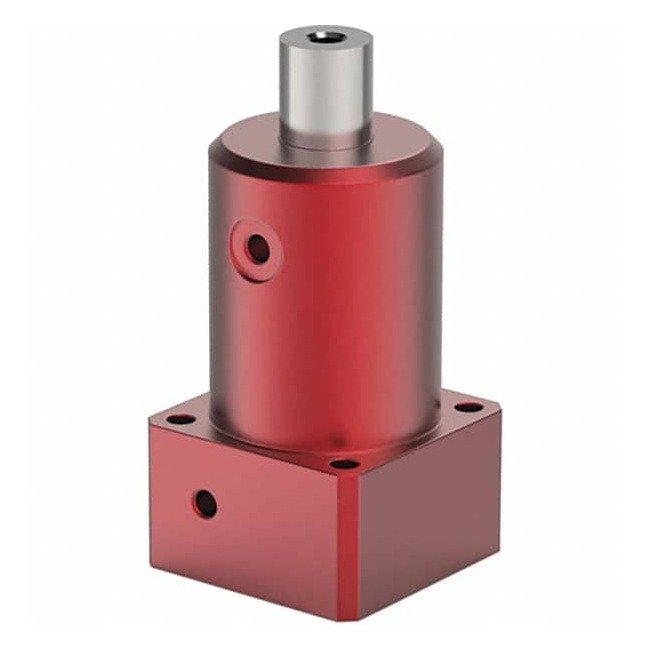

The Destaco 70 Lb Pneumatic Power Clamp is a high-performance solution with a clamping force of 70 lbs and a total stroke of 27.69mm. This double-acting swing clamp features a right hand swing direction, 1/8 in NPT port, and operates at a maximum pressure of 100 psi. With a compact design of 74.93mm body length and 39.88mm body width, this clamp offers precise and efficient clamping for various applications. Manufactured by Destaco, a trusted brand known for quality and reliability.
Product Specifications
Body Dimensions Body Length
74.93 mm
Body Dimensions Body Width
39.88 mm
Technical Specs Brands
Destaco
Technical Specs Clamping Force
70 lb
Technical Specs Manufacturer Part Number
035-240-190
Technical Specs Maximum Operating Pressure
100 psi
Technical Specs Minimum Order
1
Technical Specs Number Of Packages
1
Technical Specs Operating Volume
1.78 in³
Technical Specs Swing Clamp Port Size
1/8 in
Technical Specs Swing Direction
Right
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Total Stroke
27.69 mm
Technical Specs Unspsc Code
23153000
