Destaco 90 lb Left Swing Power Clamp
Destaco 90 lb Left Swing Power Clamp
SKU:POW-278887
Reliable Destaco 90 lb Left Swing Power Clamp for precise industrial clamping needs. Compliant with federal standards.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Destaco 90 lb Left Swing Power Clamp
$189.99
Quantity: 1
Claim Your Seller Account
Destaco 90 lb Left Swing Power Clamp
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

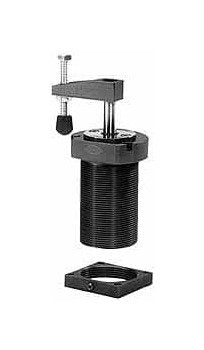

The Destaco 90 lb Left Swing Power Clamp is a reliable and efficient pneumatic swing clamp with a clamping force of 90 pounds. Featuring a 31.75mm total stroke and double-acting functionality, this clamp is designed for precision and durability. With a 1/8 NPT port, maximum operating pressure of 130 psi, and compact body dimensions of 85.3mm length x 76.2mm width, this clamp offers exceptional performance for various industrial applications. Compliant with federal procurement standards and suitable for both consumer and institutional buyers.
Product Specifications
Body Dimensions Body Length
85.3 mm
Body Dimensions Body Width
76.2 mm
Technical Specs Brands
Destaco
Technical Specs Clamping Force
90 lb
Technical Specs Manufacturer Part Number
8216
Technical Specs Maximum Operating Pressure
130 psi
Technical Specs Minimum Order
1
Technical Specs Number Of Packages
1
Technical Specs Operating Volume
2.01 in³
Technical Specs Swing Clamp Port Size
1/8 in
Technical Specs Swing Direction
Left
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Total Stroke
31.75 mm
Technical Specs Unspsc Code
23153000
Technical Specs Upc Code
697437582164
