Destaco 90 lb Right Swing Power Clamp
Destaco 90 lb Right Swing Power Clamp
SKU:POW-24a621
Experience precision and efficiency with the Destaco 90 lb Right Swing Power Clamp, ideal for industrial applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Destaco 90 lb Right Swing Power Clamp
$249.99
Quantity: 1
Claim Your Seller Account
Destaco 90 lb Right Swing Power Clamp
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

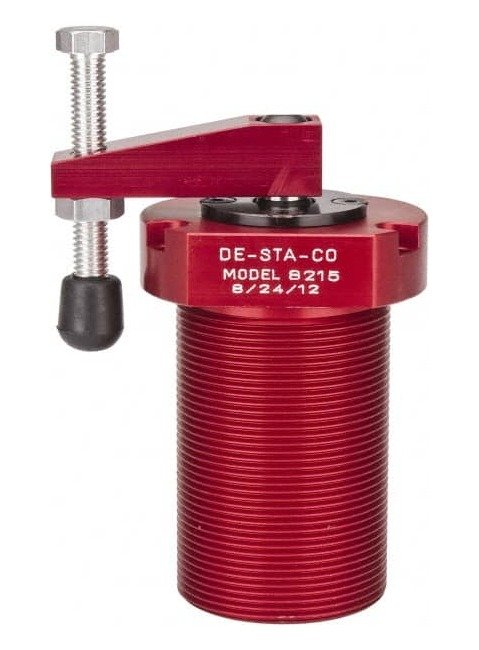

The Destaco 90 lb Right Swing Power Clamp is a robust pneumatic clamp designed for precise and efficient clamping operations. With a clamping force of 90 lb and a 21.5mm total stroke, this double-acting swing clamp ensures secure and swift clamping action. The 1/8 NPT port, 130 psi maximum operating pressure, and compact body dimensions of 85.3mm length x 76.2mm width make this clamp ideal for various industrial applications. Compliant with federal procurement standards, this clamp guarantees reliability and performance in demanding environments.
Product Specifications
Body Dimensions Body Length
85.3 mm
Body Dimensions Body Width
76.2 mm
Technical Specs Brands
Destaco
Technical Specs Clamping Force
90 lb
Technical Specs Manufacturer Part Number
8215
Technical Specs Maximum Operating Pressure
130 psi
Technical Specs Minimum Order
1
Technical Specs Number Of Packages
1
Technical Specs Operating Volume
2.01 in³
Technical Specs Swing Clamp Port Size
1/8 in
Technical Specs Swing Direction
Right
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Total Stroke
21.5 mm
Technical Specs Unspsc Code
23153000
Technical Specs Upc Code
697437582157
