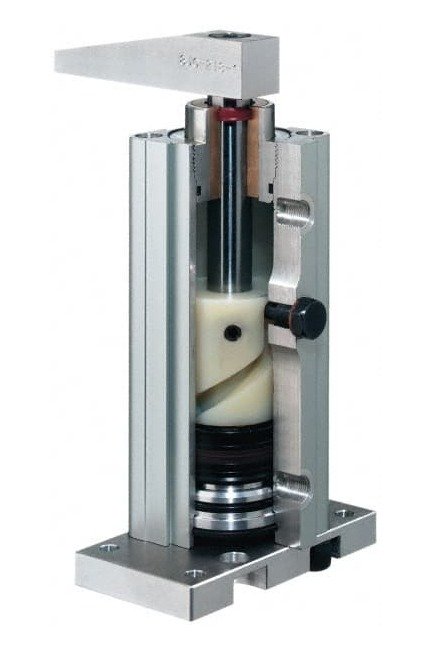

Destaco Adjustable Swing Power Clamp
Destaco Adjustable Swing Power Clamp
SKU:POW-30de92
The Destaco Adjustable Swing Power Clamp offers 263 lb clamping force, 58.5 mm stroke, and versatile swing direction (Right, Left, Straight) for precision and efficiency.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Destaco Adjustable Swing Power Clamp
$399.99
Quantity: 1
Claim Your Seller Account
Destaco Adjustable Swing Power Clamp
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Destaco Adjustable Swing Power Clamp delivers a reliable clamping force of 263 lb with a total stroke of 58.5 mm. Featuring an adjustable swing direction (Right, Left, Straight), this single-acting pneumatic clamp ensures precision and versatility. With a body length of 211.58 mm and a body width of 62.99 mm, this clamp is built for durability and efficiency. It operates at a maximum pressure of 145 psi, making it suitable for a variety of industrial applications. Trust Destaco for superior performance and adaptability in your clamping needs.
Product Specifications
Body Dimensions Body Length
211.58 mm
Body Dimensions Body Width
62.99 mm
Technical Specs Brands
Destaco
Technical Specs Clamping Force
263 lb
Technical Specs Manufacturer Part Number
89R63-025-2
Technical Specs Maximum Operating Pressure
145 psi
Technical Specs Minimum Order
1
Technical Specs Number Of Packages
1
Technical Specs Swing Direction
Adjustable (Right Left Straight)
Technical Specs Total Stroke
58.5 mm
Technical Specs Unclamp Operating Volume
182.4 cm³
Technical Specs Unspsc Code
23153000
