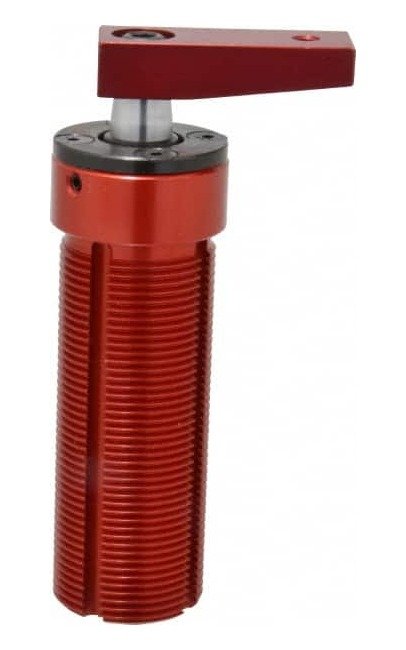

Destaco Left Swing Power Clamp - 25 lb Clamping Force
Destaco Left Swing Power Clamp - 25 lb Clamping Force
SKU:POW-537827
The Destaco Left Swing Power Clamp - 25 lb Clamping Force, ideal for secure and quick swing clamping applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Destaco Left Swing Power Clamp - 25 lb Clamping Force
$129.99
Quantity: 1
Claim Your Seller Account
Destaco Left Swing Power Clamp - 25 lb Clamping Force
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Destaco Left Swing Power Clamp offers a powerful 25 lb clamping force, precise 21.59mm total stroke, and efficient double-acting pneumatic operation. With a swing port size of 10-32 and high maximum operating pressure of 130 psi, this clamp is ideal for secure and quick swing clamping applications. Its robust 72.9mm body length and 31.8mm body width ensure durability and reliability in industrial settings. Compliant with Federal/DoD procurement standards and FAR regulations, this clamp is a trusted choice for government and institutional buyers.
Product Specifications
Body Dimensions Body Length
72.9 mm
Body Dimensions Body Width
31.8 mm
Technical Specs Brands
Destaco
Technical Specs Clamping Force
25 lb
Technical Specs Manufacturer Part Number
8016
Technical Specs Maximum Operating Pressure
130 psi
Technical Specs Minimum Order
1
Technical Specs Number Of Packages
1
Technical Specs Operating Volume Clamp
4.1 cm³
Technical Specs Swing Clamp Port Size
10-32
Technical Specs Swing Direction
Left
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Total Stroke
21.59 mm
Technical Specs Unspsc Code
23153000
Technical Specs Upc Code
697437580160
