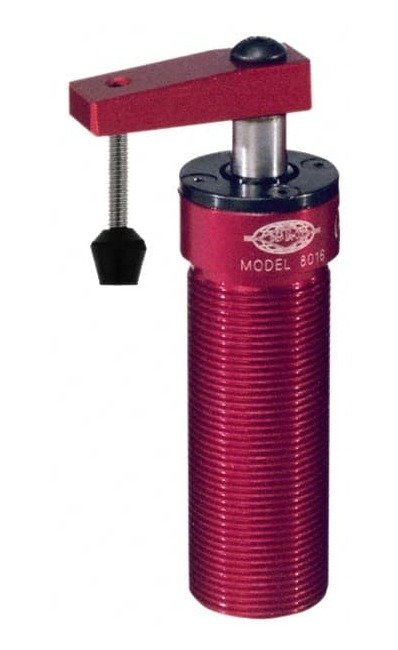

Destaco Right Swing Power Clamp
Destaco Right Swing Power Clamp
SKU:POW-6d4dee
Secure heavy-duty applications with the Destaco Right Swing Power Clamp featuring 67 lbs clamping force and pneumatic operation.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Destaco Right Swing Power Clamp
$129.99
Quantity: 1
Claim Your Seller Account
Destaco Right Swing Power Clamp
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Destaco Right Swing Power Clamp offers a sturdy clamping force of 67 lbs and features a 31.75mm total stroke, ideal for securing workpieces with precision. Designed for efficiency, this double-acting pneumatic clamp has a 1/8 NPT port for reliable functionality. With a compact body length of 80.5mm and a width of 54.1mm, this clamp ensures versatile usage in various applications. Operating at a max pressure of 130 psi, it provides a secure grip while maintaining ease of use and durability, meeting the highest quality standards for industrial and institutional settings.
Product Specifications
Body Dimensions Body Length
80.5 mm
Body Dimensions Body Width
54.1 mm
Technical Specs Brands
Destaco
Technical Specs Clamping Force
67 lb
Technical Specs Manufacturer Part Number
8415
Technical Specs Maximum Operating Pressure
130 psi
Technical Specs Minimum Order
1
Technical Specs Number Of Packages
1
Technical Specs Operating Volume
1.17 in³
Technical Specs Swing Clamp Port Size
1/8 in
Technical Specs Swing Direction
Right
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Total Stroke
31.75 mm
Technical Specs Unspsc Code
23153000
