Destaco Right Swing Power Clamp with 27 lb Clamping Force
Destaco Right Swing Power Clamp with 27 lb Clamping Force
SKU:POW-5a6ea6
Experience precision clamping with Destaco's strong 27 lb Right Swing Power Clamp. Ideal for securing workpieces in industrial settings.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Destaco Right Swing Power Clamp with 27 lb Clamping Force
$189.99
Quantity: 1
Claim Your Seller Account
Destaco Right Swing Power Clamp with 27 lb Clamping Force
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

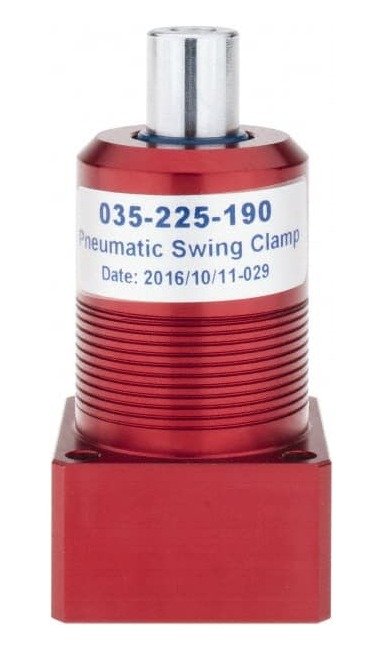

The Destaco Right Swing Power Clamp delivers precise clamping with a powerful 27 lb force. Featuring a 66.55mm body length, 24.89mm body width, and a 26.67mm total stroke, this double-acting pneumatic clamp ensures efficient and secure operation. With a 10-32 port size, NPT thread type, and a maximum operating pressure of 100 psi, this clamp is designed for reliability and durability in industrial applications. Compliant with industry standards, it meets the demands of both consumer and institutional buyers seeking top-quality clamping solutions.
Product Specifications
Body Dimensions Body Length
66.55 mm
Body Dimensions Body Width
24.89 mm
Technical Specs Brands
Destaco
Technical Specs Clamping Force
27 lb
Technical Specs Manufacturer Part Number
035-225-190
Technical Specs Maximum Operating Pressure
100 psi
Technical Specs Minimum Order
1
Technical Specs Number Of Packages
1
Technical Specs Operating Volume
0.55 in³
Technical Specs Swing Clamp Port Size
10-32
Technical Specs Swing Direction
Right
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Total Stroke
26.67 mm
Technical Specs Unspsc Code
23153000
