DF Series High Pressure In-Line Industrial Filter (6090 PSI)

DF Series High Pressure In-Line Industrial Filter (6090 PSI)

HYD-af10ed

Enhanced DF Series High Pressure In-Line Industrial Filter with robust design for 6090 psi applications, ensuring reliability and performance.

$349.99
$349.99
Sale

Initiate Order

DF Series High Pressure In-Line Industrial Filter (6090 PSI)

DF Series High Pressure In-Line Industrial Filter (6090 PSI)

$349.99

Quantity: 1

Claim Your Seller Account

DF Series High Pressure In-Line Industrial Filter (6090 PSI)

DF Series High Pressure In-Line Industrial Filter (6090 PSI)

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The DF Series High Pressure In-Line Industrial Filter is a robust solution designed for applications requiring filtration at 6090 psi. With a maximum flow capacity of 29 gpm and a durable construction using ductile iron and steel materials, this filter ensures reliable performance in high-pressure hydraulic systems. Featuring O-ring seals for secure sealing and a poppet-type bypass valve for optimal operation, this filter offers enhanced system reliability and performance. Suitable for a wide range of industries, including automotive, industrial, and power generation, this filter meets stringent industry standards for quality and durability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialPulp & PaperOffshoreRailwaysCommercial MunicipalShipbuildingPower GenerationSteel / Heavy Industry

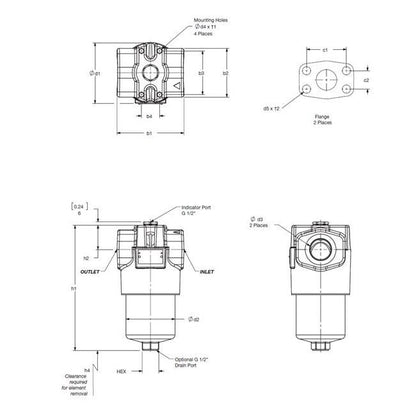

Dimensions Diameter D1
3.39 in | 86 mm
Dimensions Dimension B1
3.54 in | 90 mm
Dimensions Dimension B2
2.8 in | 71 mm
Dimensions Dimension B3
2.2 in | 56 mm
Dimensions Dimension B4
1.26 in | 32 mm
Dimensions Dimension D2
2.68 in | 68 mm
Dimensions Dimension D3
3/4 in.
Dimensions Dimension D4
1/4-28UNF- 2B
Dimensions Dimension H1
9.88 in | 251 mm
Dimensions Dimension H2
1.57 in | 40 mm
Dimensions Dimension H4
3.35 in | 85 mm
Dimensions Dimension T1
0.35 in | 9 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of NPT, BSPP, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (sizes 60 - 1320) to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, and ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl or lid (on 2-pc. bowls) mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bun
EA
Specifications Cap Material
Steel
Specifications Filter Type
Inline Filter
Specifications Indication Type
C = 2 terminal electric switch
Specifications Model Code Description
DFBN/HC110TC10C1.0/12V-S0103H
Specifications Modification Number
0
Specifications Port Configuration
SAE Straight Thread O-ring Boss Ports
Specifications Port Connection
3/4 in.
Specifications Seals
Fluorocarbon Elastomer (FKM)
Specifications Size
110
Specifications Type
High Pressure Filter
Specifications Type Number
1
Specifications Weight
12 lb
Technical Specifications Burst Housing Pressure Rating
1200 bar | 17400 psi
Technical Specifications Bypass Valve
Non-Bypass
Technical Specifications Construction Material For Bowl
Steel
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Element K Factors
0.489
Technical Specifications Fatigue Housing Pressure Rating At 1 Mi
420 bar | 6090 psi
Technical Specifications Filter Rating
10 µm

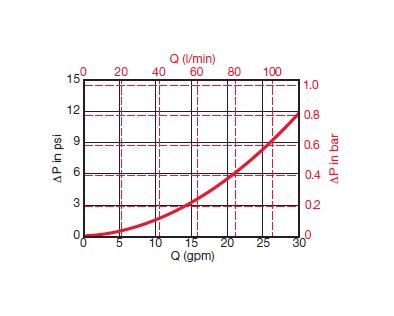

Technical Specifications Flow Capacity
29 gpm | 110 L/min
Technical Specifications Flow Direction
Inside - Outside
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
Technical Specifications Maximum Allowable Housing Working Press
420 bar | 6090 psi
Technical Specifications Maximum Fluid Temperature
100 ºC | 212 ºF
Technical Specifications Minimum Fluid Temperature
-10 ºC | 14 ºF
