DF Series High Pressure In-Line Industrial Filter - 6090 PSI
DF Series High Pressure In-Line Industrial Filter - 6090 PSI
SKU:HYD-76c461
DF Series High Pressure In-Line Industrial Filter - 6090 PSI, non-welded housing design, reliable sealing, optimal fluid cleanliness solution
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
DF Series High Pressure In-Line Industrial Filter - 6090 PSI
$1,399.99
Quantity: 1
Claim Your Seller Account
DF Series High Pressure In-Line Industrial Filter - 6090 PSI
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DF Series High Pressure In-Line Industrial Filter is specially designed for applications requiring filtration at 6090 psi and up to 200 gpm flow capacity. Featuring a non-welded housing design for enhanced durability and a poppet-type bypass valve for optimal sealing during operations, this filter ensures reliability in various industries such as Agricultural, Automotive, Construction, and more. With compatibility with a wide range of fluids and robust construction materials, this filter offers efficient and effective fluid cleanliness solutions.
Product Specifications
Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialPulp & PaperOffshoreRailwaysCommercial MunicipalShipbuildingPower GenerationSteel / Heavy Industry

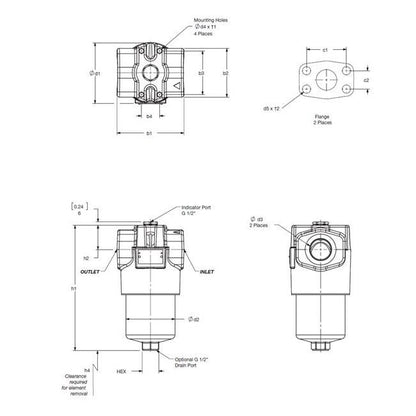

Dimensions Diameter D1
4.69 in | 119 mm
Dimensions Dimension B1
4.92 in | 125 mm
Dimensions Dimension B2
3.74 in | 95 mm
Dimensions Dimension B3
3.35 in | 85 mm
Dimensions Dimension B4
1.38 in | 35 mm
Dimensions Dimension D2
3.74 in | 95 mm
Dimensions Dimension D3
1-1/4 in.
Dimensions Dimension D4
3/8-24UNF- 2B
Dimensions Dimension H1
9.57 in | 243 mm
Dimensions Dimension H2
1.85 in | 47 mm
Dimensions Dimension H4
4.13 in | 105 mm
Dimensions Dimension T1
0.55 in | 14 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of NPT, BSPP, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (sizes 60 - 1320) to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, and ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl or lid (on 2-pc. bowls) mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bun
EA
Specifications Cap Material
Steel
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Type
Inline Filter
Specifications Indication Type
D = Electric switch and LED light - SPDT
Specifications Model Code Description
DF ON 160TE3D1.0/12V-B6-L24
Specifications Modification Number
0
Specifications Port Configuration
SAE Straight Thread O-ring Boss Ports
Specifications Port Connection
1 1/4 in.
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seals
Fluorocarbon Elastomer (FKM)
Specifications Size
160
Specifications Type
High Pressure Filter
Specifications Type Number
1
Specifications Weight
22.8 lb
Supplementary Details 0
Lamp for D-type clogging indicator (LXX, XX = voltage)
Technical Specifications Burst Housing Pressure Rating
1180 bar | 17110 psi
Technical Specifications Bypass Valve
B6
Technical Specifications Bypass Valve Cracking Pressure
6 bar | 87 psid
Technical Specifications Construction Material For Bowl
Steel
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Element Collapse Pressure Rating
20 bar | 290 psi
Technical Specifications Element K Factors
0.604

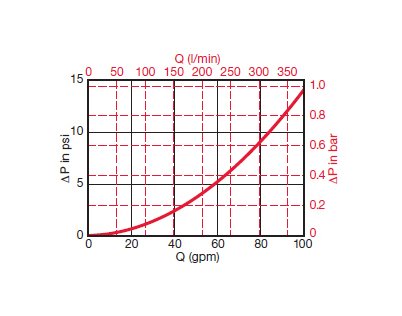

Technical Specifications Flow Capacity
42 gpm | 160 L/min
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
