DF Series High Pressure In-Line Industrial Filter - 6090 PSI
DF Series High Pressure In-Line Industrial Filter - 6090 PSI
SKU:HYD-4e493f
DF Series High Pressure In-Line Filter - Ideal for high-pressure applications, ensures efficient filtration and reliability. Max pressure: 6090 psi.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
DF Series High Pressure In-Line Industrial Filter - 6090 PSI
$499.99
Quantity: 1
Claim Your Seller Account
DF Series High Pressure In-Line Industrial Filter - 6090 PSI
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DF Series High Pressure In-Line Industrial Filter is designed for applications requiring a maximum allowable housing working pressure rating of 6090 psi. With a flow capacity of 42 gpm and a filter rating of 10 µm, this filter ensures efficient filtration in high-pressure environments. Constructed with durable materials like ductile iron and steel, it offers fatigue pressure ratings equal to the maximum working pressure rating. The non-welded housing design and a poppet-type bypass valve enhance reliability and performance, suitable for industrial, agricultural, automotive, and marine applications.
Product Specifications
Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialPulp & PaperOffshoreRailwaysCommercial MunicipalShipbuildingPower GenerationSteel / Heavy Industry
Dimensions Diameter D1
4.69 in | 119 mm
Dimensions Dimension B1
4.92 in | 125 mm
Dimensions Dimension B2
3.74 in | 95 mm
Dimensions Dimension B3
3.35 in | 85 mm
Dimensions Dimension B4
1.38 in | 35 mm
Dimensions Dimension D2
3.74 in | 95 mm
Dimensions Dimension D3
1-1/4 in.
Dimensions Dimension D4
3/8-24UNF- 2B
Dimensions Dimension H1
11.91 in | 302.5 mm
Dimensions Dimension H2
1.85 in | 47 mm
Dimensions Dimension H3
4.13 in | 105 mm
Dimensions Dimension H4
4.13 in | 105 mm
Dimensions Dimension T1
0.55 in | 14 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of NPT, BSPP, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (sizes 60 - 1320) to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, and ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl or lid (on 2-pc. bowls) mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bun
EA
Specifications Cap Material
Steel
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Type
Inline Filter
Specifications Indication Type
C = 2 terminal electric switch
Specifications Model Code Description
DFBH/HC240TE10C1.0/12B6
Specifications Modification Number
0
Specifications Port Configuration
SAE Straight Thread O-ring Boss Ports
Specifications Port Connection
1 1/4 in.
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seals
Nitrile Rubber (NBR)
Specifications Size
240
Specifications Type
High Pressure Filter
Specifications Type Number
1
Specifications Weight
26.1 lb
Technical Specifications Burst Housing Pressure Rating
1180 bar | 17110 psi
Technical Specifications Bypass Valve
B6
Technical Specifications Bypass Valve Cracking Pressure
6 bar | 87 psid
Technical Specifications Construction Material For Bowl
Steel
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Element Collapse Pressure Rating
210 bar | 3045 psi

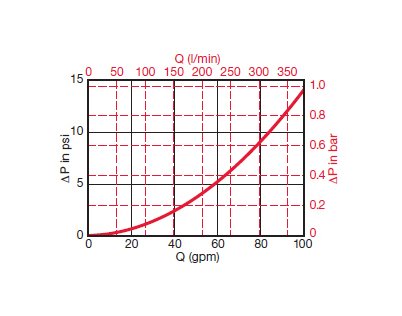

Technical Specifications Element K Factors
0.214
Technical Specifications Flow Capacity
42 gpm | 160 L/min
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
