DF Series High Pressure In-Line Industrial Filter (6090 PSI)

DF Series High Pressure In-Line Industrial Filter (6090 PSI)

HYD-428524

Reliable DF Series High Pressure Inline Filter - 6090 PSI, 8 gpm, 3µm, Steel Build, Non-Welded Housing. Ideal for industrial applications.

$349.99
$349.99
Sale

Initiate Order

DF Series High Pressure In-Line Industrial Filter (6090 PSI)

DF Series High Pressure In-Line Industrial Filter (6090 PSI)

$349.99

Quantity: 1

Claim Your Seller Account

DF Series High Pressure In-Line Industrial Filter (6090 PSI)

DF Series High Pressure In-Line Industrial Filter (6090 PSI)

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The DF Series High Pressure In-Line Industrial Filter is engineered for applications requiring filtration at 6090 psi, offering a flow capacity of 8 gpm and a filter rating of 3 µm. Constructed with durable materials like ductile iron and steel, it ensures reliability under extreme conditions. The non-welded housing design reduces stress concentrations, while the poppet-type bypass valve provides positive sealing during operation. With compatibility across various fluids, this filter caters to diverse industries from automotive to steel production.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialPulp & PaperOffshoreRailwaysCommercial MunicipalShipbuildingPower GenerationSteel / Heavy Industry

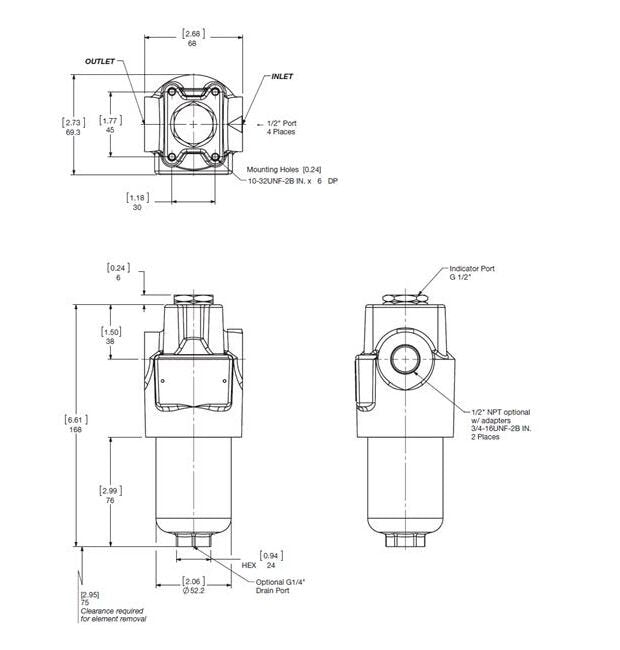

Dimensions Diameter D1
2.73 in | 69.3 mm
Dimensions Dimension B1
2.68 in | 68 mm
Dimensions Dimension H1
6.61 in | 168 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of NPT, BSPP, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (sizes 60 - 1320) to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, and ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl or lid (on 2-pc. bowls) mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bun
EA
Specifications Cap Material
Steel
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Type
Inline Filter
Specifications Indication Type
BM = Pop-up indicator (manual reset)
Specifications Model Code Description
DFBH/HC30TB3BM1.0/12V
Specifications Modification Number
0
Specifications Port Configuration
SAE Straight Thread O-ring Boss Ports
Specifications Port Connection
1/2 in.
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seals
Fluorocarbon Elastomer (FKM)
Specifications Size
30
Specifications Type
High Pressure Filter
Specifications Type Number
1
Specifications Weight
5.1 lb
Technical Specifications Burst Housing Pressure Rating
1100 bar | 15950 psi
Technical Specifications Bypass Valve
Non-Bypass
Technical Specifications Construction Material For Bowl
Steel
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Element Collapse Pressure Rating
210 bar | 3045 psi
Technical Specifications Element K Factors
5.005
Technical Specifications Fatigue Housing Pressure Rating At 1 Mi
420 bar | 6090 psi
Technical Specifications Filter Rating
3 µm
Technical Specifications Flow Capacity
8 gpm | 30 L/min
Technical Specifications Flow Direction
Inside - Outside
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
Technical Specifications Maximum Allowable Housing Working Press
420 bar | 6090 psi
Technical Specifications Maximum Fluid Temperature
100 ºC | 212 ºF
Technical Specifications Minimum Fluid Temperature
-10 ºC | 14 ºF
Technical Specifications Mounting Method
4 Mounting Holes
Technical Specifications Note For Fluid Temperature Range
Consult HYDAC for applications operating below 14ºF (-10ºC)
Technical Specifications Tolerance For Cracking Pressure Optiona
10 %
Technical Specifications Tolerance For Cracking Pressure Standar
10 %
