DF Series High Pressure Industrial Filter (6090 PSI)
DF Series High Pressure Industrial Filter (6090 PSI)
SKU:HYD-777575
Ensure optimal performance in high-pressure hydraulic and lube systems with the DF Series Industrial Filter (6090 PSI).
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
DF Series High Pressure Industrial Filter (6090 PSI)
$289.99
Quantity: 1
Claim Your Seller Account
DF Series High Pressure Industrial Filter (6090 PSI)
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DF Series High Pressure Industrial Filter is a robust solution designed for hydraulic and lube systems operating under high pressure conditions, with a maximum working pressure rating of 6090 psi. Featuring a durable steel construction, this inline filter offers a flow capacity of up to 200 gpm, ensuring efficient filtration performance. The non-welded housing design reduces stress concentrations, enhancing longevity and reliability. With compatibility across a range of fluids and a bypass valve for cold starts, this filter is ideal for various industries from agriculture to power generation.
Product Specifications
Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialPulp & PaperOffshoreRailwaysCommercial MunicipalShipbuildingPower GenerationSteel / Heavy Industry

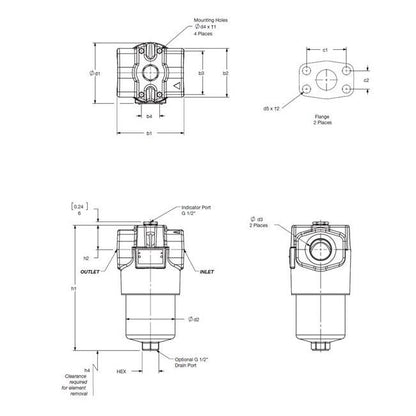

Dimensions Diameter D1
3.39 in | 86 mm
Dimensions Dimension B1
3.54 in | 90 mm
Dimensions Dimension B2
2.8 in | 71 mm
Dimensions Dimension B3
2.2 in | 56 mm
Dimensions Dimension B4
1.26 in | 32 mm
Dimensions Dimension D2
2.68 in | 68 mm
Dimensions Dimension D3
3/4 in.
Dimensions Dimension D4
1/4-28UNF- 2B
Dimensions Dimension H1
9.88 in | 251 mm
Dimensions Dimension H2
1.57 in | 40 mm
Dimensions Dimension H4
3.35 in | 85 mm
Dimensions Dimension T1
0.35 in | 9 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of NPT, BSPP, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (sizes 60 - 1320) to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, and ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl or lid (on 2-pc. bowls) mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bun
EA
Specifications Cap Material
Steel
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Type
Inline Filter
Specifications Indication Type
B = Pop-up indicator (auto reset)
Specifications Model Code Description
DFW/HC110TC74B1.0/12B6
Specifications Modification Number
0
Specifications Port Configuration
SAE Straight Thread O-ring Boss Ports
Specifications Port Connection
3/4 in.
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seals
Nitrile Rubber (NBR)
Specifications Size
110
Specifications Type
High Pressure Filter
Specifications Type Number
1
Specifications Weight
12 lb
Technical Specifications Burst Housing Pressure Rating
1200 bar | 17400 psi
Technical Specifications Bypass Valve
B6
Technical Specifications Bypass Valve Cracking Pressure
6 bar | 87 psid
Technical Specifications Construction Material For Bowl
Steel
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Element Collapse Pressure Rating
20 bar | 290 psi
Technical Specifications Element K Factors
0.23
Technical Specifications Fatigue Housing Pressure Rating At 1 Mi
420 bar | 6090 psi

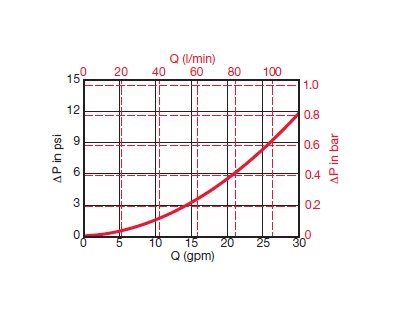

Technical Specifications Flow Capacity
29 gpm | 110 L/min
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
