DF Series High Pressure Inline Industrial Filter (6090 PSI)
DF Series High Pressure Inline Industrial Filter (6090 PSI)
SKU:HYD-7fa344
Enhance system reliability with the DF Series High Pressure Inline Industrial Filter (6090 PSI), ensuring peak performance and protection at 29 gpm flow capacity.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DF Series High Pressure Inline Industrial Filter (6090 PSI)
$349.99
Quantity: 1
Claim Your Seller Account
DF Series High Pressure Inline Industrial Filter (6090 PSI)
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DF Series High Pressure Inline Industrial Filter is a top-of-the-line solution for applications requiring reliable filtration at 6090 psi. With a flow capacity of 29 gpm, this filter ensures efficient performance and maximum protection for hydraulic systems. Its robust construction, featuring ductile iron and steel components, guarantees durability under high pressure conditions. The non-welded housing design minimizes stress concentrations, while the choice of seals allows compatibility with various fluids. Ideal for industrial sectors like agriculture, automotive, and power generation, this filter meets stringent standards for quality and performance.
Product Specifications
Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialPulp & PaperOffshoreRailwaysCommercial MunicipalShipbuildingPower GenerationSteel / Heavy Industry
Dimensions Diameter D1
3.39 in | 86 mm
Dimensions Dimension B1
3.54 in | 90 mm
Dimensions Dimension B2
2.8 in | 71 mm
Dimensions Dimension B3
2.2 in | 56 mm
Dimensions Dimension B4
1.26 in | 32 mm
Dimensions Dimension D2
2.68 in | 68 mm
Dimensions Dimension D3
3/4 in.
Dimensions Dimension D4
1/4-28UNF- 2B
Dimensions Dimension H1
9.88 in | 251 mm
Dimensions Dimension H2
1.57 in | 40 mm
Dimensions Dimension H4
3.35 in | 85 mm
Dimensions Dimension T1
0.35 in | 9 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of NPT, BSPP, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (sizes 60 - 1320) to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, and ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl or lid (on 2-pc. bowls) mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bun
EA
Specifications Cap Material
Steel
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Type
Inline Filter
Specifications Indication Type
D = Electric switch and LED light - SPDT
Specifications Model Code Description
DF ON 110TC3D1.0/12B6-L110
Specifications Modification Number
0
Specifications Port Configuration
SAE Straight Thread O-ring Boss Ports
Specifications Port Connection
3/4 in.
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seals
Nitrile Rubber (NBR)
Specifications Size
110
Specifications Type
High Pressure Filter
Specifications Type Number
1
Specifications Weight
12 lb
Supplementary Details 0
Lamp for D-type clogging indicator (LXX, XX = voltage)
Technical Specifications Burst Housing Pressure Rating
1200 bar | 17400 psi
Technical Specifications Bypass Valve
B6
Technical Specifications Bypass Valve Cracking Pressure
6 bar | 87 psid
Technical Specifications Construction Material For Bowl
Steel
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Element Collapse Pressure Rating
20 bar | 290 psi
Technical Specifications Element K Factors
0.735

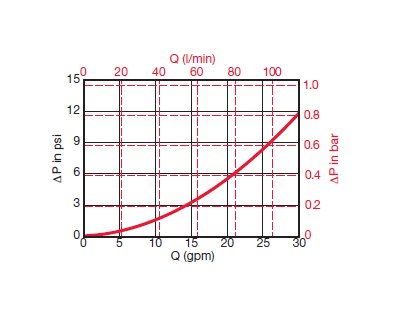

Technical Specifications Flow Capacity
29 gpm | 110 L/min
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
