DF Series In-Line Industrial Filter - High Pressure (6090 PSI)

DF Series In-Line Industrial Filter - High Pressure (6090 PSI)

HYD-c5e56a

Enhance system performance with the high-pressure DF Series In-Line Industrial Filter - optimum protection at 6090 PSI.

$289.99
$289.99
Sale

Initiate Order

DF Series In-Line Industrial Filter - High Pressure (6090 PSI)

DF Series In-Line Industrial Filter - High Pressure (6090 PSI)

$289.99

Quantity: 1

Claim Your Seller Account

DF Series In-Line Industrial Filter - High Pressure (6090 PSI)

DF Series In-Line Industrial Filter - High Pressure (6090 PSI)

$289.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The DF Series In-Line Industrial Filter is designed to meet the rigorous demands of high-pressure systems, with a maximum allowable working pressure rating of 6090 psi. Featuring a durable construction using ductile iron and steel materials, this filter ensures reliable performance in hydraulic and lube systems. The non-welded housing design reduces stress concentrations, enhancing longevity and performance. With compatibility across various fluid types, O-ring seals provide secure sealing and prevent contamination. The innovative bypass valve offers positive sealing during normal operation and fast opening to handle cold starts and flow surges. Ideal for industrial, automotive, and marine applications, this filter guarantees efficient filtration and system protection.

Product Specifications

Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialPulp & PaperOffshoreRailwaysCommercial MunicipalShipbuildingPower GenerationSteel / Heavy Industry
Dimensions Diameter D1
4.69 in | 119 mm
Dimensions Dimension B1
4.92 in | 125 mm
Dimensions Dimension B2
3.74 in | 95 mm
Dimensions Dimension B3
3.35 in | 85 mm
Dimensions Dimension B4
1.38 in | 35 mm
Dimensions Dimension D2
3.74 in | 95 mm
Dimensions Dimension D3
1-1/4 in.
Dimensions Dimension D4
3/8-24UNF- 2B
Dimensions Dimension H1
19.06 in | 484 mm
Dimensions Dimension H2
1.85 in | 47 mm
Dimensions Dimension H4
4.13 in | 105 mm
Dimensions Dimension T1
0.55 in | 14 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of NPT, BSPP, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (sizes 60 - 1320) to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, and ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl or lid (on 2-pc. bowls) mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bun
EA
Specifications Cap Material
Steel
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Type
Inline Filter
Specifications Indication Type
C = 2 terminal electric switch
Specifications Model Code Description
DF ON 280TE5C1.0/12B6
Specifications Modification Number
0
Specifications Port Configuration
SAE Straight Thread O-ring Boss Ports
Specifications Port Connection
1 1/4 in.
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seals
Nitrile Rubber (NBR)
Specifications Size
280
Specifications Type
High Pressure Filter
Specifications Type Number
1
Specifications Weight
36 lb
Technical Specifications Burst Housing Pressure Rating
1180 bar | 17110 psi
Technical Specifications Bypass Valve
B6
Technical Specifications Bypass Valve Cracking Pressure
6 bar | 87 psid
Technical Specifications Construction Material For Bowl
Steel
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Element Collapse Pressure Rating
20 bar | 290 psi
Technical Specifications Element K Factors
0.15
Technical Specifications Fatigue Housing Pressure Rating At 1 Mi
420 bar | 6090 psi

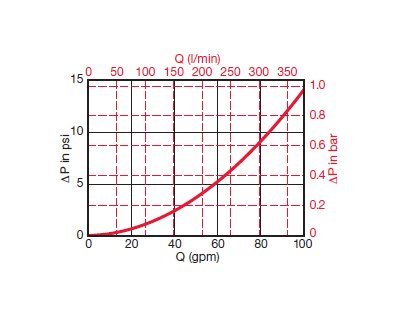

Technical Specifications Flow Capacity
42 gpm | 280 L/min
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
