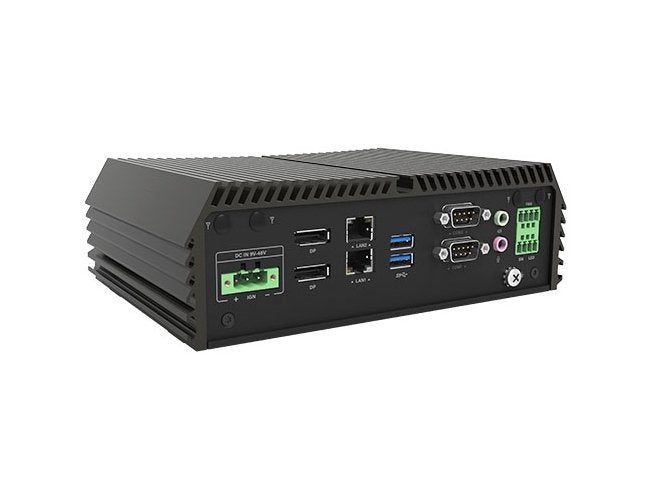

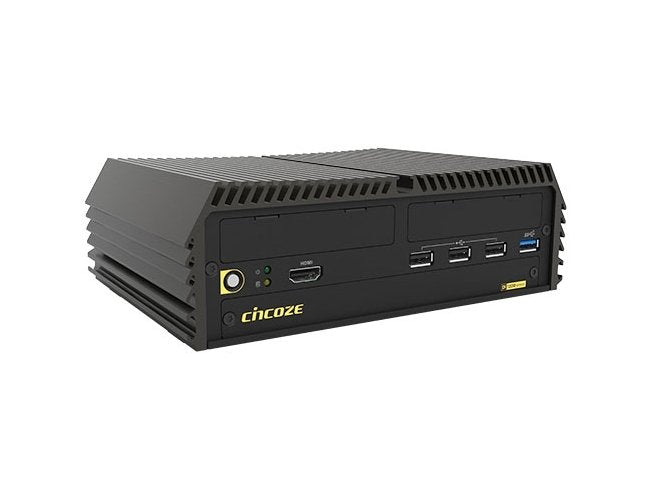

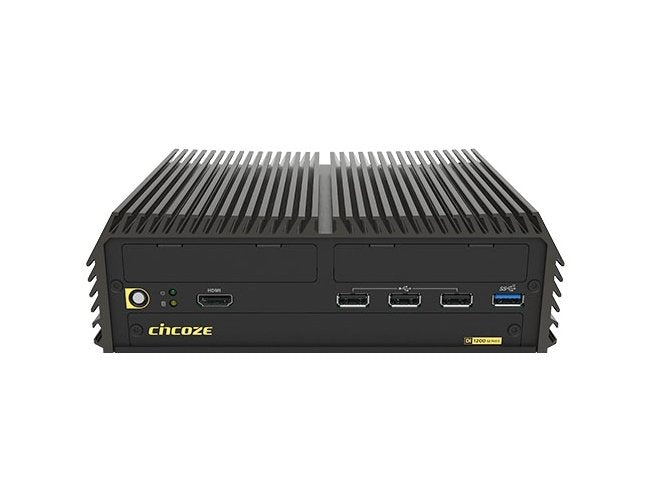

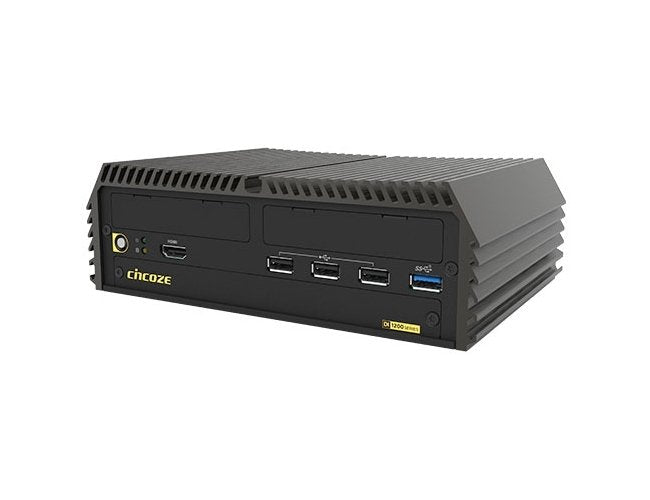

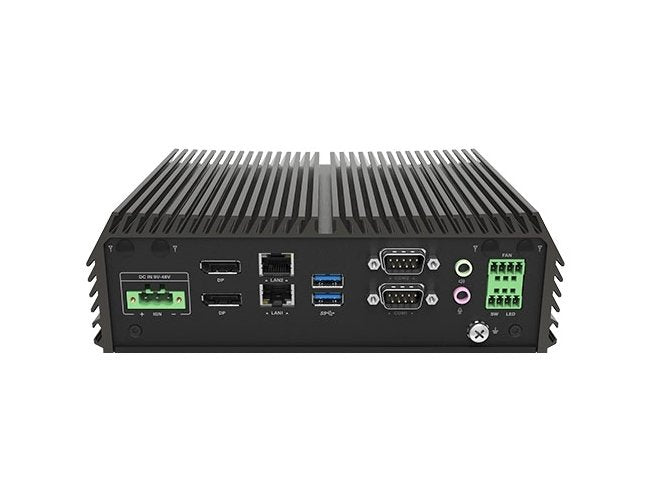

12th Generation Intel® Core⢠i7-1265UE High Performance, Compact and Modular Rugged Embedded Computer
Product Specifications
Additional Information Additional Information
High Performance and Power SavingThe DI-1200 supports the 12th generation Core⢠i7/i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. Its exceptional processing performance and ultra-low power consumption of just 15W, make it highly suitable for mobile devices limited by battery capacity.Smaller than A5The DI-1200 has a footprint smaller than a sheet of A5 paper, with dimensions of only 203 x 142 x 66.8 mm. It is ideal for mobile devices such as AGVs and AMRs, tight spaces in vehicles, or small cabinets in factories.High-speed I/OThe DI-1200 offers a range of high-speed I/O, including LAN (10GbE, 2.5GbE, 1GbE), USB 3.2 (10Gbps, 5Gbps), USB 2.0, and more, making data and image transmission faster and allowing easy connection to various high-speed devices.Comprehensive Wireless OptionsThe DI-1200 has one M.2 Key E slot and one M.2 Key B slot, supporting a full range of wireless transmission options, including GSM, GNSS, Wi-Fi, and Bluetooth. It also supports the Intel® CNVi module, meeting diverse transmission needs.Quick Hard Drive RemovalMobile devices must allow quick access to data. The DI-1200 features a hot-swappable 2.5-inch SATA HDD/SSD slot in the front panel of the chassis, making it easy to remove the hard drive and access the data on it.Secure and RuggedThe DI-1200 showcases its ruggedness and industrial-grade protections through multiple industry certifications. It complies with industrial EMC standards (IEC 61000-6-2 and IEC 61000-6-4), ensuring reliable operation in external electromagnetic interference from surrounding devices. The DI-1200 also meets the U.S. military standard, MIL-STD-810H, ensuring stable operation under extreme shock and vibration conditions
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only)EN 50155 (EN 50121-3-2 Only)E-mark (Pending)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 50121-3-2 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN 61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Environment Environmental Management System Ems
EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/mEN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 10V(Compliant with the standard when utilizing shielded cable.)EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Environment Non Condensing Relative Humidity Rh At 70 Degree Cel
95 %
Environment Note For Operating Temperature
PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)With extended temperature peripherals; Ambient with air flowAccording to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Environment Operating Temperature
-40 to 70 ºC
Environment Safety
Canadian Underwriters Laboratories (cUL) | Certification Body Scheme (CB) | European Norm (EN 62368-1) | International Electrotechnical Commission (IEC) | Underwriters Laboratories (UL)
Environment Shock
MIL-STD-810H
Environment Storage Temperature
-40 to 70 ºC
Environment Vibration
MIL-STD-810H
Expansion Combined Multiple Interface Cmi Inputoutput Io
1x CMI Interface for optional CMI-LAN Module Expansion1x CMI Interface for optional CMI-Display/CMI-COM/CMI-DIO Module Expansion
Expansion Control Function Module Cfm Interface
1x CFM IGN Interface for optional CFM-IGN Module Expansion
Expansion M2 Key B Socket
1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1 / USB3.2 Gen2 x1 / USB2.0 / SATA ), Support 5G/Storage/Add-on Card Expansion(The maximum height of the M.2 Key B add-on card varies depending on the installed CMI module. Please refer to the manual for
Expansion M2 Key E Socket
1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Intel® CNVi Module Expansion(The maximum height of the M.2 Key E add-on card is limited to 6.7mm.)
Expansion Subscriber Identity Module Sim Socket
2 x Front Accessible SIM Socket
Features Features
Onboard 12th Intel® Alder Lake-P U-Series Core⢠i7/i5/i3 Processors1 x DDR5 SO-DIMM Sockets, Supports up to 4800MHz 32GB MemoryQuad Independent Display (2x DP/HDMI/CMI Display)1x M.2 Key E Type 2230 Socket for Wireless / Intel CNVi Module Expansion1x M.2 Key B Type 3042 / 3052 Socket for 5G / Storage / Add-on Card ExpansionCMI Technology for Optional I/O Module ExpansionsCFM Technology for Power Ignition Sensing Function & PoEWide Operating Temperature -40 ºC to 70 ºCSafety Standard: UL, cUL, CB, IEC, EN 62368-1
Graphics Common Management Interface Cmi Display
1x CMI Interface for Optional CMI-DP/CMI-HDMI/CMI-VGA Module Expansion
Graphics Displayport Dp
2x DisplayPort Connector (3840 x 2160 at 60 Hz)
Graphics Graphics Engine
Integrated Intel® Iris® Xe Graphics: Core⢠i7-1265UE, i5-1245UE
Graphics High Definition Multimedia Interface Hdmi
1x HDMI Connector (3840 x 2160 at 60Hz)
Graphics Maximum Display Output
Supports Quad Independent Display
Inputoutput Io Ports Communication Port Com
2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
Inputoutput Io Ports Local Area Network Lan
2x 2.5 GbE LAN, RJ45(GbE1: Intel® I225)(GbE2: Intel® I225)
Inputoutput Io Ports Universal Serial Bus Usb
1 x USB 3.2 Gen2x1 (10Gbps), Type A2 x USB 3.2 Gen1x1 (5 Gbps), Type A3 x USB 2.0 (480 Mbps), Type A
Operating System Linux
Ubuntu 22.04
Operating System Microsoft Windows
Windows® 10 | Windows® 11
Physical Depth
142 mm
Physical Height
66.8 mm
Physical Width
203 mm
Power Power Button
1 x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1 x AT/ATX Mode Switch
Power Remote Power Light Emitting Diode Led
1x Remote Power LED, 2-Pin Terminal Block
Power Remote Power Onoff
1 x Remote Power On/Off, 2-Pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input
Yes
