Diagraph HP Thermal Jet Systems - High-Resolution Industrial Inkjet Printer
Diagraph HP Thermal Jet Systems - High-Resolution Industrial Inkjet Printer
SKU:PAC-2d885b
Get precise industrial inkjet solutions with Diagraph HP Thermal Jet Systems. High resolution printing, user-friendly interface, and remote capabilities for efficient operations.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Diagraph HP Thermal Jet Systems - High-Resolution Industrial Inkjet Printer
$4,999.99
Quantity: 1
Claim Your Seller Account
Diagraph HP Thermal Jet Systems - High-Resolution Industrial Inkjet Printer
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

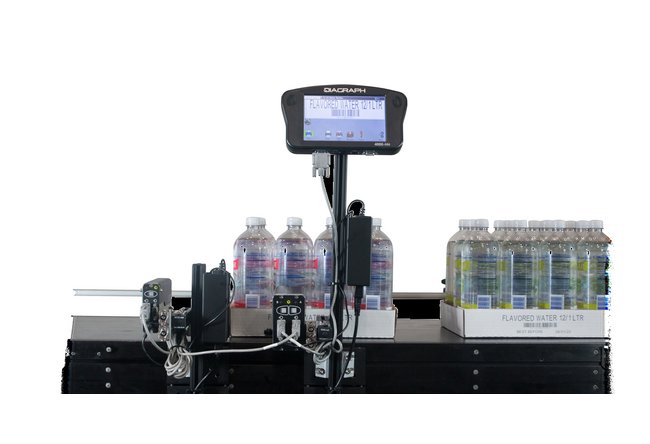

The Diagraph HP Thermal Jet System is a reliable solution for manufacturers seeking industrial porous or nonporous inkjet printing. With high resolution capabilities of up to 1" tall or 10 lines of text, barcodes, and graphics, this system offers easy snap-in ink cartridges for quick replenishment. Featuring a 7" color touchscreen display, WYSIWYG editor, and multiple connectivity options, it provides user-friendly operation and remote capabilities. With compliance to TUV and regulatory requirements, this printer ensures efficient and top-quality printing for diverse industrial applications.
Product Specifications
Key Features Key Features

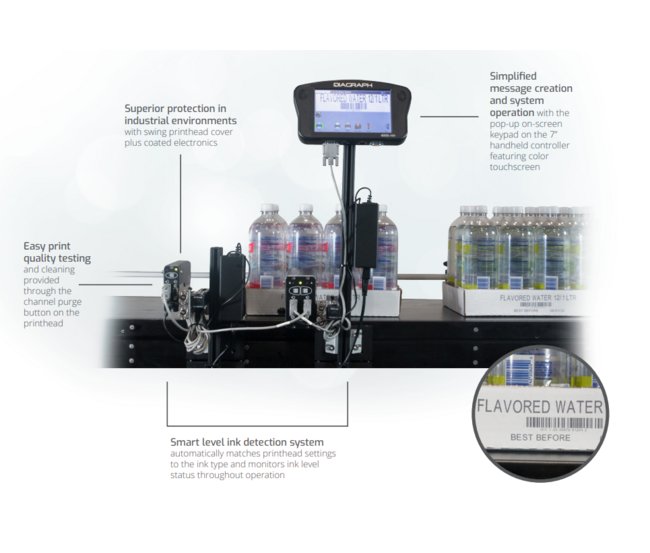

Multiple printhead configurations allow you to drive up to eight TJ500 1/2" or four TJ1000 1" printheads on two independent production lines per controller.Smart level ink detection system automatically matches printhead settings to the ink type and monitors ink level status throughout operation.Flexible controller options include the IJ4000-HH direct connection for continuous operation, PC software to design and download print messages and printheads can be used as standalone systems with no connection at all.
Specifications Auto Codes
Count | Date | Operator Input | Shifts | Time | User Defined
Specifications Barcodes
2D Data Matrix | Code 128 | Code 39 | EAN | GS1-128 | GTIN | I2of5 | QR | UCC | UPC
Specifications Connectivity
1-Ethernet | 1-USB | 2-RS232
Specifications Direct Interface
Protocol Provided
Specifications Enclosure Material
Drop Resistant | Industrial Thermoplastic
Specifications Fonts
True Type Available
Specifications Font Height
1/10 in | 1/4 in | 1/2 in | 3/4 in | 1 in
Specifications Ink Delivery
Cartridge (45SI Available)
Specifications Ink Supplies
42 mil
Specifications Ink Types
Enhanced Solvent Based Option with Maximized De-Cap Times for Non-Porous Substrates | Porous and Non-Porous Inks | Water Based for Porous and Aqueous Coated Cartons
Specifications Logos And Images
BMP | JPEG | PNG | TIF
Specifications Memory
512 MB
Specifications Network Software With Database
No
Specifications Operating Environment Temperature
10 to 40 ºC | 50 to 104 ºF
Specifications Operator Interface
Graphic User Interface (GUI) | WYSIWYG Editor
Specifications Printhead
TJ1000 (1") | TJ500 (1/2")
Specifications Print Height For Tj1000
1 in
Specifications Print Height For Tj1001
25 mm
Specifications Print Height For Tj500
1/2 in
Specifications Print Height For Tj501
13 mm
Specifications Print Options
Angled Conveyor | Side | Top Down
Specifications Print Resolution
300 x 300 dpi
Specifications Print Speeds With Reduced Resolutions
0 to 500 fpm
Specifications Print Throw Distance
0 to 1/4 in
Specifications Production Capacity
Drives Two Independent Production Lines
Specifications Qwerty Keypad
Touchscreen Pop-up | Unicode Compatible
Specifications Regulatory Listings
TUV (CE/CSA/UL)
Specifications Remote Capabilities
Controller Utilities for Remote Operations and Status
Specifications Standard Print Speeds
0 to 200 fpm
Specifications Technology
Diagraph HP Thermal Jet
Specifications Touch Screen Display Size Color
7 in | 178 mm
Specifications Windows Personal Computer Pc Graphic User Interfa
Graphic User Interface (GUI) | WYSIWYG Editor
