Diagraph IJ4000 High Resolution Inkjet Printers
Diagraph IJ4000 High Resolution Inkjet Printers
SKU:PAC-725702
Achieve sharp, high-resolution prints on porous surfaces with Diagraph IJ4000 Inkjet Printers. Fast, accurate, and reliable.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Diagraph IJ4000 High Resolution Inkjet Printers
$5,899.99
Quantity: 1
Claim Your Seller Account
Diagraph IJ4000 High Resolution Inkjet Printers
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

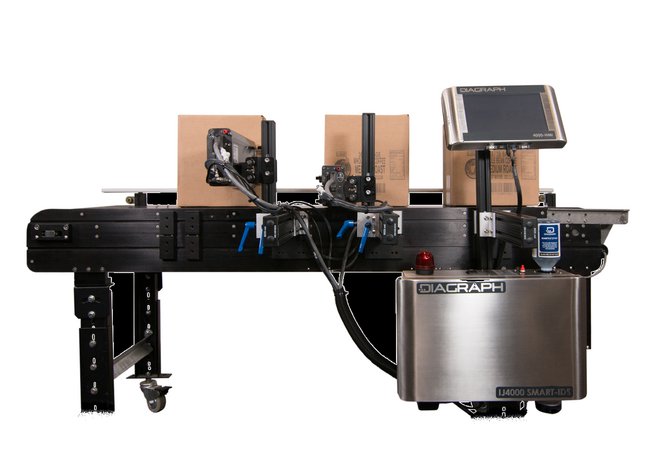

The Diagraph IJ4000 High Resolution Inkjet Printers feature cutting-edge Piezoelectric technology for precision printing on porous surfaces. With a user-friendly Graphic User Interface (GUI) and advanced connectivity options, these printers offer superior edge definition and high-speed printing of barcodes, graphics, and alphanumerics. The Smart Ink Delivery System ensures efficient ink management across multiple printheads, while the automatic cleaning system maintains optimal print quality in diverse industrial environments. Ideal for packaging applications requiring superior legibility and scanner recognition.
Product Specifications
Controller Auto Codes
Barcodes | Count | Date | Julian | Shifts | Time | Use By | User Defined | Variable Input
Controller Bar Codes
128 | 2D Data Matrix | Code 39 | EAN | GS1-128 | GTIN | I2of5 | UCC | UPC
Controller Connectivity
1-Ethernet | 1-USB | 2-RS232
Controller Controller
IJ4000 HMI
Controller Enclosure
Environmentally Sealed | Stainless Steel
Controller Fonts
True Type Available
Controller Io Interface
IO Board Options
Controller Logos
Bitmap Images | Multiple Formats
Controller Memory
512 MB
Controller Operator Interface
Graphic User Interface (GUI) | WYSIWYG Editor
Controller Qwerty Keypad
Pop Up on Touch Screen
Controller Touch Screen Display Size Color
10.2 in | 25.0 cm
Ink Systems Compatible Substrates
Corrugate | Fiber Board | Gypsum | Paper | Wood and More
Ink Systems Ink Delivery
Centralized Ink Delivery for Multiple Printheads
Ink Systems Ink Supplies
500 and 1000 mL
Ink Systems Ink Types
Porous Inks, Black and Red Pigmented for Barcodes
Key Features Key Features
Automatic cleaning system can adjust to your unique environment to keep dust, glue and debris from getting inside the printhead nozzles, maintaining excellent print qualityReinforced roller retractors combined with superior ink throw distances assure quality prints regardless of irregularities in gaps between the printhead and cartonsBuilt-in channel check feature allows all printhead channels to be assessed by the simple push of a button at the printhead level, giving operators the ability to quickly prime the printheads on the spot for maximum print quality. Smart Ink Delivery System design allows you to control multiple production lines from remote locations while also simplifying ink management across multiple printheads with a single ink supply
Pc Interface Direct Interface
Protocol Provided
Pc Interface Network Software With Database
Available Option
Pc Interface Windows Pc Gui Software
Graphic User Interface (GUI), WYSIWYG Editor
Printheads Printheads
IJ384E | IJ768E
Printheads Print Height For Ij384e Printheads
2 in | 50 mm
Printheads Print Height For Ij768e Printheads
4 in | 100 mm
Printheads Print Options
Angled | Low Temp | Side | Top Down
Printheads Print Resolution
192 x 300 dpi
Printheads Print Resolution User Selectable Range
100 to 300 dpi
Printheads Print Throw Distance For Barcodes
0 to 1/4 in | 6 mm
Printheads Print Throw Distance For Text Application Dependent
0 to 1/2 in | 2.5 mm
Printheads Standard Print Speeds
0 to 250 fpm
Printheads Technology
Piezoelectric (Trident Impulse Jet)
System Operating Environment
50 to 104 ºF | 10 to 40 ºC
System Operating Environment Option 0 C
32 ºF
System Regulatory Listings
TUV (CE/CSA/UL)
