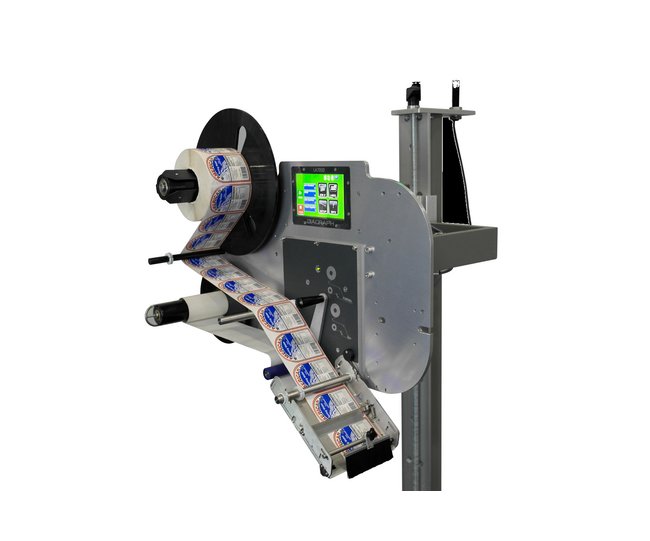

Diagraph LA7000 Electric Label Applicator
Diagraph LA7000 Electric Label Applicator
SKU:PAC-a9398b
Enhance labeling efficiency with precise placements and remote adjustments using the Diagraph LA7000 Electric Label Applicator System.
Regular price
$5,499.00
Regular price
Sale price
$5,499.00
Unit price
per
Initiate Order
Diagraph LA7000 Electric Label Applicator
$5,499.00
Quantity: 1
Claim Your Seller Account
Diagraph LA7000 Electric Label Applicator
$5,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your labeling operations with the Diagraph LA7000 Electric Label Applicator System. Featuring servo-controlled label dispensing for precise placements, remote adjustment capabilities, and compatibility with various label applications. This system offers reliable performance to streamline labeling processes and reduce manual interventions.
Product Specifications
Accuracy E Tampblow High Speed Tamp Tolerance
0.09 in | 2.4 mm
Accuracy E Tamp E Wasa E Fasa Wipe Tolerance
0.06 in | 1.6 mm
Dimension With Yoke Depth
26 in | 660 mm
Dimension With Yoke Height
27 in | 686 mm
Dimension With Yoke Length
31 in | 787 mm
Hh 4000 Handheld Controller Ambient Operating Temperature
40 to 104 ºF | 5 to 40 ºC
Hh 4000 Handheld Controller Connectivity
(1) 100 Base-T Ethernet Port
Hh 4000 Handheld Controller Enclosure Material
Black Acrylonitrile Butadiene Styrene (ABS) Plastic
Hh 4000 Handheld Controller Memory
512 MB
Hh 4000 Handheld Controller Non Condensing Operating Humidity
10 to 90 %
Hh 4000 Handheld Controller Operator Interface
Graphic User Interface (GUI)
Hh 4000 Handheld Controller Regulatory Listings
Fast Transient Burst (EN 61000-4-4; IEC 61000-4-4) | Radiated Emissions (CISPR 11, EN 55011) Pass | Radiated Immunity (EN 61000-4-3; IEC 61000-4-3)
Hh 4000 Handheld Controller Touch Screen Display Size
7 in
Key Features Key Features

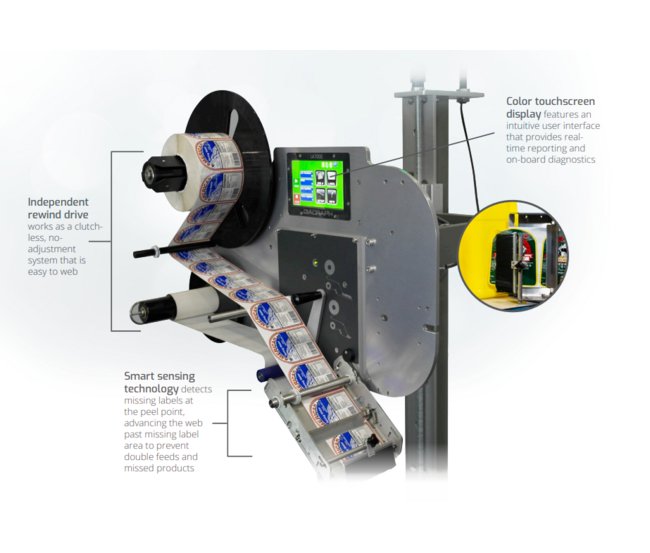

All-electric design frees manufacturers from the inconsistencies and high costs of plant air, enabling unparalleled one-to-one label-to-product placement.Brushless servo motor drives precision label dispensing to achieve accurate, repeatable label placement. Intelligent sensors ensure no missing or double fed labels.Remote access allows for setting adjustments and status checks to take place away from the line on a controller or PC.
Line Speed Line Speed Of E Fasa
0 to 75 fpm
Line Speed Line Speed Of E Tamp E Tampblow
0 to 150 fpm
Line Speed Line Speed Of E Wasa
0 to 125 fpm
Line Speed Line Speed Of High Speed Tamp
300+ fpm
Line Speed Line Speed Of Wipe
0 to 300 fpm
Product Rate Product Rate Of E Fasa
Dual Apply: Up to 28 ppm | Single Apply: Up to 52 ppm
Product Rate Product Rate Of E Tamp
0 to 120 ppm
Product Rate Product Rate Of E Tampblow
0 to 55 ppm
Product Rate Product Rate Of E Wasa
Dependent on Label Length, Print Speed and Product Spacing
Product Rate Product Rate Of High Speed Tamp
Application Dependent
Product Rate Product Rate Of Wipe
0 to 800 ppm
Specifications Certifications
CSA CAN/CSA-C22.2 No. 62368-1:2014 | FCC Part 15b | IEC 61000-6-2 2005/AC: 2005 Immunity | IEC 61000-6-4 2007/A1: 2011 Emission | UL62368-1:2014
Specifications Core Diameter
3 in | 76.2 mm
Specifications Label Length
1 in | 25.4 mm
Specifications Minimum Label Length
0 to 558.8 mm | 0 to 22 in
Specifications Minimum Narrow Web Label Width
0 to 6 in | 0 to 152.4 mm
Specifications Minimum Wide Web Label Width
0 to 9 in | 0 to 228.6 mm
Specifications Narrow Web Label Width
0.5 in | 12.7 mm
Specifications Non Condensing Relative Humidity
10 to 85 %
Specifications Outer Diameter Of Roll
14 in | 355.6 mm
Specifications Temperature
41 to 104 ºF | 5 to 40 ºC
Specifications Wide Web Label Width
0.5 in | 12.7 mm
Weight Chi Stand
83 lb | 37.6 kg
Weight E Fasa
101 lb | 45.8 kg
Weight E Tamp E Wasa High Speed Tamp
98 lb | 44.5 kg
