Diagraph PA7100 Electric Print & Apply Labeler
Diagraph PA7100 Electric Print & Apply Labeler
SKU:PAC-3b5ab8
Enhance labeling precision and efficiency with the Diagraph PA7100 Electric Labeler's advanced technology and remote monitoring capabilities.
Regular price
$12,999.00
Regular price
Sale price
$12,999.00
Unit price
per
Initiate Order
Diagraph PA7100 Electric Print & Apply Labeler
$12,999.00
Quantity: 1
Claim Your Seller Account
Diagraph PA7100 Electric Print & Apply Labeler
$12,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diagraph PA7100 Electric Print and Apply Labeler revolutionizes labeling operations with its advanced brushless servo-controlled technology for precise label placement at high speeds. This all-electric system offers remote system adjustments and status monitoring capabilities, ensuring efficient labeling across various product surfaces. With compliance to CSA, FCC, UL standards, and featuring integrated controllers and a user-friendly touchscreen interface, the PA7100 guarantees reliable labeling performance in primary and secondary packaging applications.
Product Specifications
Accuracy E Tampblow High Speed Tamp
0.09 in | 2.4 mm
Accuracy E Tamp E Wasa E Fasa
0.06 in | 1.6 mm
Ambient Conditions Non Condensing Humidity
10 to 85 %
Ambient Conditions Operating Temperature
40 to 104 ºF
Ambient Conditions Protection Class
IP32
Ambient Conditions Storage Temperature
-25 to 80 ºF
Dimension With Yoke Depth
26 in | 660 mm
Dimension With Yoke Height
27 in | 868 mm
Dimension With Yoke Length
31 in | 787 mm

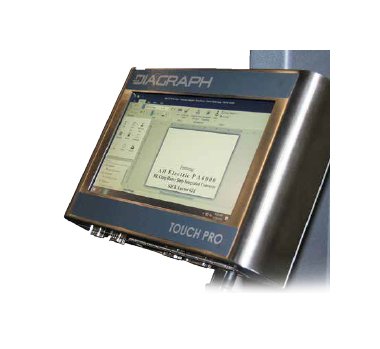

Display Backlight
Light Emitting Diode (LED)
Display Colors
16.2 m
Display Display Dimensions
222.72 x 130.5 mm
Display Native Resolution
1024 x 600 px
Display Screen Size
10.2 in | 25.908 cm
Display Technology
TFT Liquid Crystal Display (LCD)
Hh 4000 Handheld Controller Controller Ambient Operating Tempera
40 to 104 ºF | 5 to 40 ºC
Hh 4000 Handheld Controller Controller Connectivity
(1) 100 Base-T Ethernet Port
Hh 4000 Handheld Controller Controller Enclosure
Black ABS Plastic
Hh 4000 Handheld Controller Controller Memory
512 MB Flash Memory
Hh 4000 Handheld Controller Controller Operator Interface
Graphical User Interface (GUI)
Hh 4000 Handheld Controller Controller Regulatory Listing
Radiated Emissions (CISPR 11, EN 55011) Pass, Radiated Immunity(EN 61000-4-3; IEC 61000-4-3), Fast Transient Burst (EN 61000-4-4;IEC 61000-4-4)
Hh 4000 Handheld Controller Controller Touch Screen Display Size
7 in
Hh 4000 Handheld Controller Hh 4000 Handheld Controller

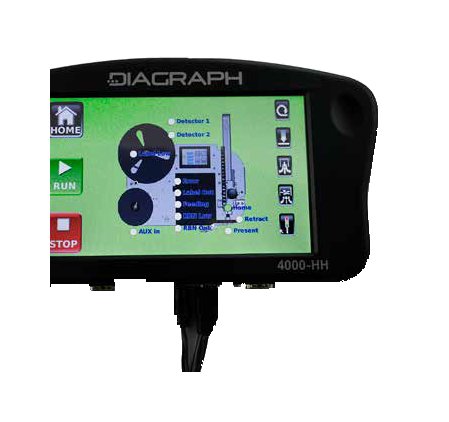

The Diagraph HH-4000 is perfect for adjusting labeler settings and making job selections when the labeler orientation makes the onboard controller hard to reach. Use one controller across multiple labelers. Compact, handheld controller with 7" high resolution touchscreen Remote access to labeler settings and diagnostic screensPairs seamlessly with Diagraph's PA7100 and LA7000 labeling systems
Hh 4000 Handheld Controller Non Condensing Operating Humidity
10 to 90 %
Housing Dimensions Front Base
8.2 in
Housing Dimensions Front Height
12 in
Housing Dimensions Housing Depth
2.49 in
Housing Dimensions Housing Weight
6.4 lb
Interface Local Area Network Lan
1 x RJ-45
Interface Serial Port
3 x RS-232*
Interface Universal Serial Bus Usb
1 X Internal USB 2.0 | 3 x USB 2.0, 1 x USB 3.0
Interface Video Display
3 x RS-232
Key Features Key Features

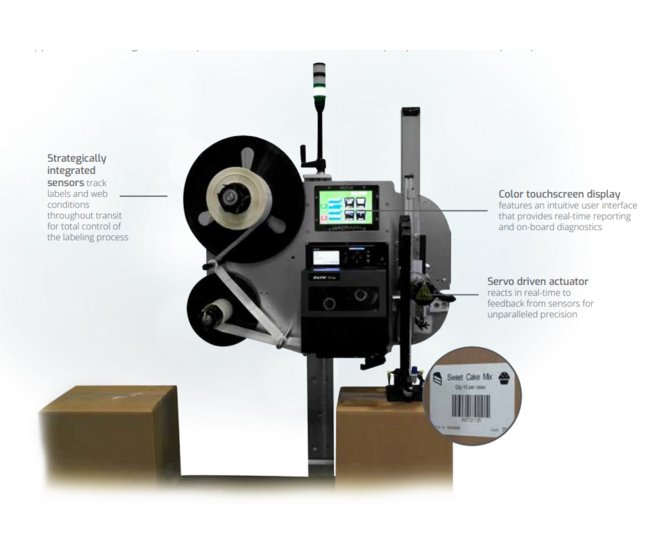

All-electric design frees manufacturers from the inconsistencies and high costs of plant air, enabling unparalleled one-to-one label-to-product placementDiagnostic screen provides real time feedback from smart sensors for quick troubleshootingBrushless DC servo motors drive precision label dispensing and control throughout transit for superior label placementRemote access allows for setting adjustments and status checks to take place away from the line on a controller or PC
Power Supply Direct Current Dc Supply Voltage
12 V
Power Supply Power Consumption
19 W
Specifications Core Diameter
3 in | 76.2 mm
Specifications Label Width
0.5 to 6.5 in | 12.7 to 165.1 mm
Specifications Minimum Label Width
0.5 in | 12.7 mm
Specifications Supply Roll Capacity Outside Diameter
14 in | 355.6 mm
