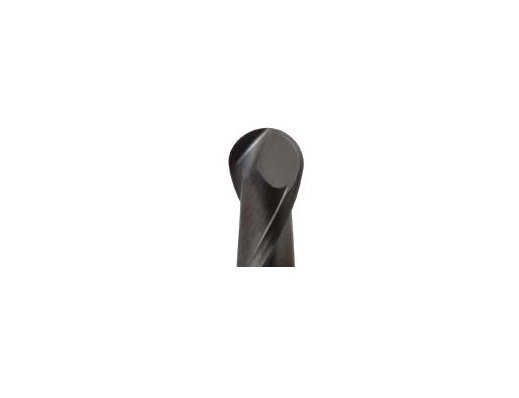

Diamond Coated 2-Flute Ball Nose End Mill - 1mm
Diamond Coated 2-Flute Ball Nose End Mill - 1mm
SKU:DIA-8dc8b5
Achieve precision and durability with the Diamond Coated 2-Flute Ball Nose End Mill - 1mm for enhanced machining performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Diamond Coated 2-Flute Ball Nose End Mill - 1mm
$59.99
Quantity: 1
Claim Your Seller Account
Diamond Coated 2-Flute Ball Nose End Mill - 1mm
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

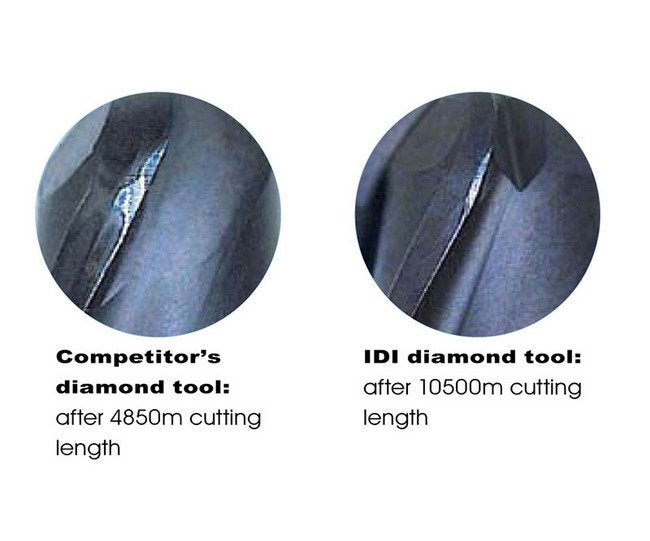

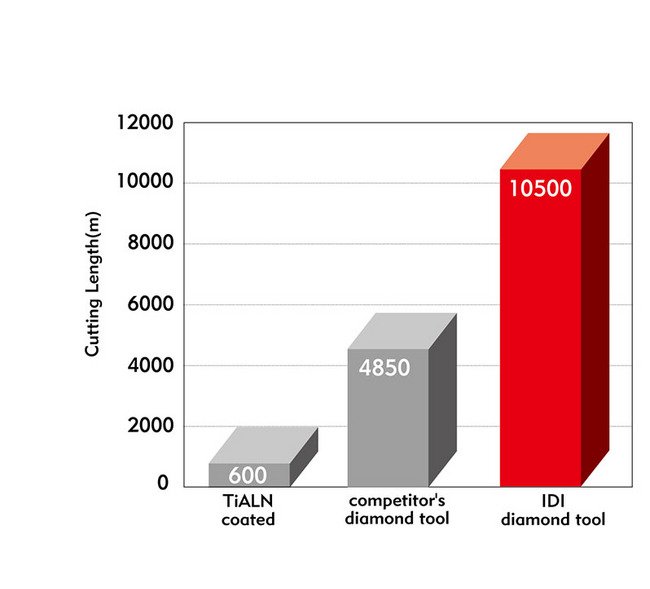

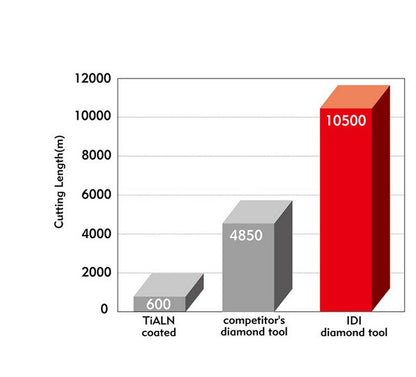

Enhance your machining operations with the Diamond Coated 2-Flute Ball Nose End Mill - 1mm. This precision tool from IDI offers exceptional cutting performance and durability, with a tool life up to 20 times longer than uncoated mills. Utilizing a specially sintered substrate, high-performance tool geometry, and superior diamond coating, this end mill ensures precise results. Ideal for graphite and composite material machining in industries like semiconductor, die, mold, and more.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

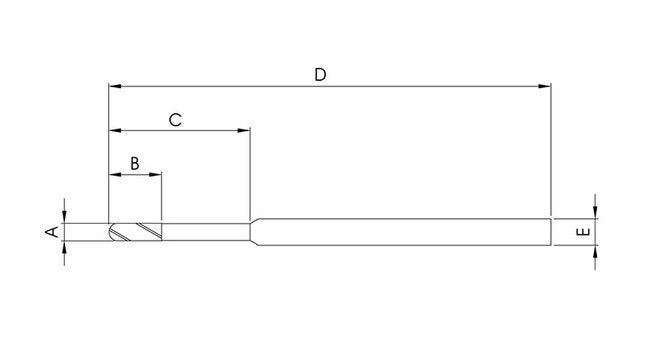

Specifications Cutting Diameter A
1 mm
Specifications Flute Length B
2 mm
Specifications Number Of Flute
2
Specifications Overall Length E
50 mm
Specifications Reach C
25 mm
Specifications Shank Diameter D
3 mm
