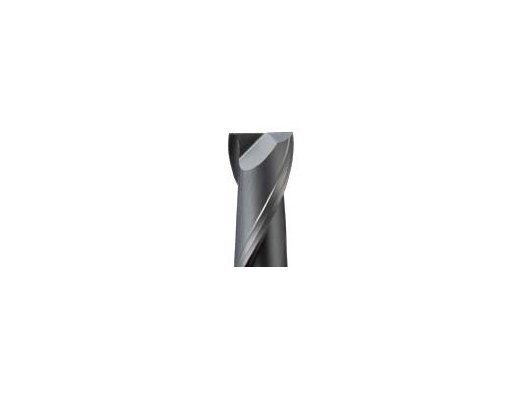

Diamond Coated 2-Flute Square End Mill (0.2mm, 3mm Shank)

Name: Diamond Coated 2-Flute Square End Mill (0.2mm, 3mm Shank)
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-5a7a03
Price: 49.99 USD
Availability: OutOfStock

SKU:DIA-5a7a03

Maximize efficiency with the Diamond Coated 2-Flute Square End Mill. Exceptional durability and cutting performance for precise applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

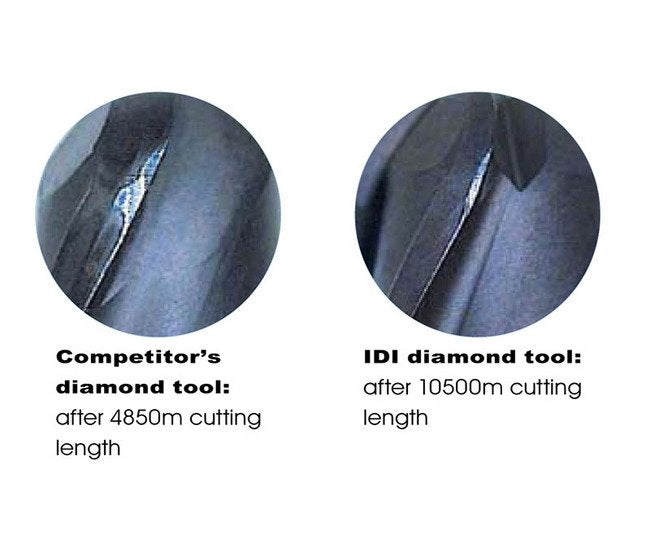

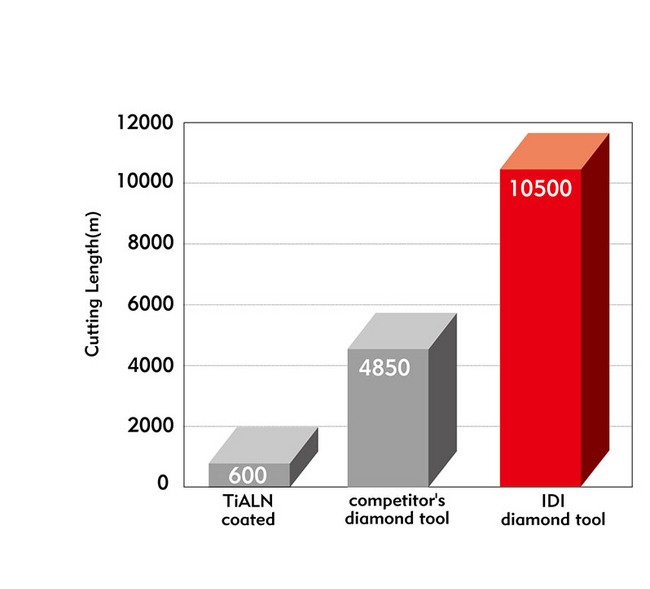

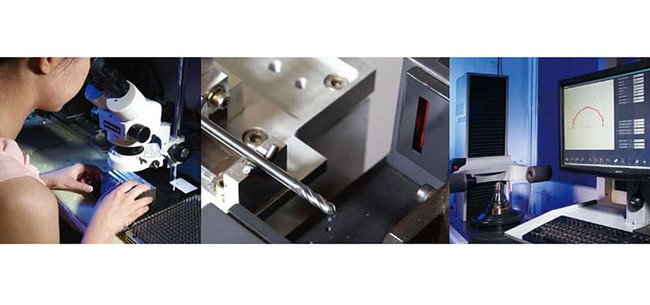

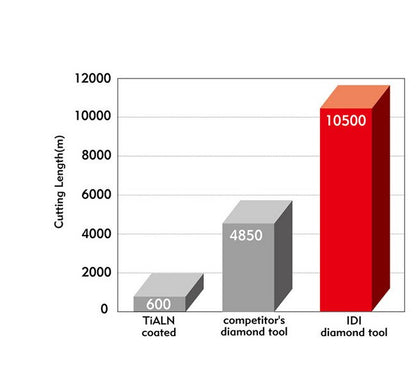

Experience superior cutting performance and extreme durability with the Diamond Coated 2-Flute Square End Mill. Featuring a specially sintered substrate, high-performance geometry, and a top-grade diamond coating, this tool offers exceptional longevity, exceeding uncoated tools by 12-20 times. Precisely crafted using Zoller Measuring and Mitutoyo Laser Scan equipment, each tool undergoes meticulous inspection to ensure perfection. Ideal for graphite, composite materials, and ceramics, this end mill is designed for precision in semiconductor, mold, and CFRP applications.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

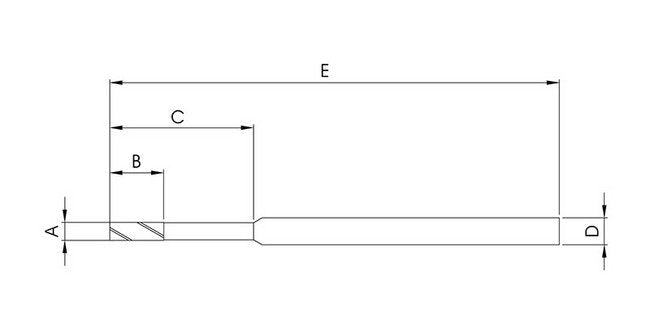

Specifications Cutting Diameter A

0.2 mm

Specifications Flute Length B

0.4 mm

Specifications Number Of Flute

Specifications Overall Length E

40 mm

Specifications Reach C

0.4 mm

Specifications Shank Diameter D

3 mm

Diamond Coated 2-Flute Square End Mill (0.2mm, 3mm Shank)
