Diamond Coated 4-Flute Ball Nose End Mill - 12mm

Name: Diamond Coated 4-Flute Ball Nose End Mill - 12mm
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-73d3d3
Price: 49.99 USD
Availability: OutOfStock

SKU:DIA-73d3d3

Achieve superior precision and durability with our Diamond Coated 4-Flute End Mill - perfect for graphite, composites, and ceramics.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your precision machining capabilities with the Diamond Coated 4-Flute Ball Nose End Mill. Engineered for top cutting performance and extended tool life, this end mill features a specially sintered substrate, high-performance tool geometry, and a durable diamond coating. Ideal for applications in graphite milling, composite materials, and ceramics machining, this tool undergoes rigorous quality control checks using advanced equipment. Experience exceptional tool longevity, reaching up to 20 times that of uncoated tools, ensuring optimal performance and outstanding results for your operations.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

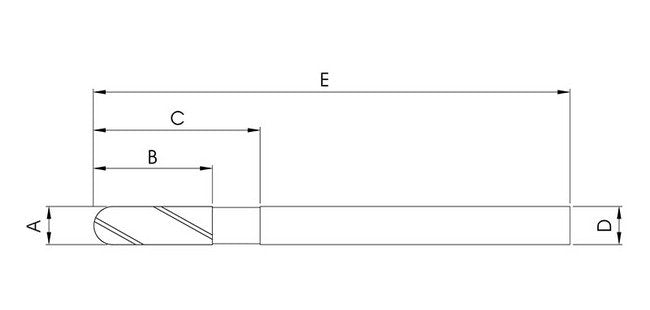

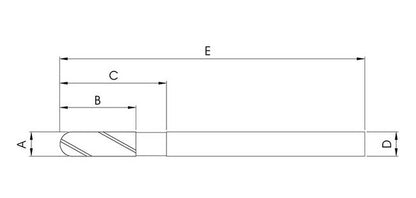

Specifications Cutting Diameter A

12 mm

Specifications Flute Length B

25 mm

Specifications Number Of Flute

Specifications Overall Length E

150 mm

Specifications Reach C

35 mm

Specifications Shank Diameter D

12 mm
