Diamond Coated 4-Flute Ball Nose End Mill - 2mm

Name: Diamond Coated 4-Flute Ball Nose End Mill - 2mm
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-030fd9
Price: 39.99 USD
Availability: OutOfStock

SKU:DIA-030fd9

Enhanced tool life & precision with Diamond Coated 4-Flute Ball Nose End Mill - ideal for graphite milling & composite material machining.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience unrivaled cutting performance and extended tool life with the IDI Diamond Coated 4-Flute Ball Nose End Mill. Engineered with a specially sintered substrate, premium tool geometry, and exceptional diamond coating, this tool surpasses uncoated alternatives in longevity. Utilizing advanced equipment like Zoller Measuring Machine and Mitutoyo Laser Scan Meter, each tool undergoes meticulous inspection to ensure perfection. Ideal for graphite milling in the semiconductor and die mold industries, as well as machining composite materials like CFRP and ceramics, this end mill delivers precision and reliability while meeting stringent industry standards.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

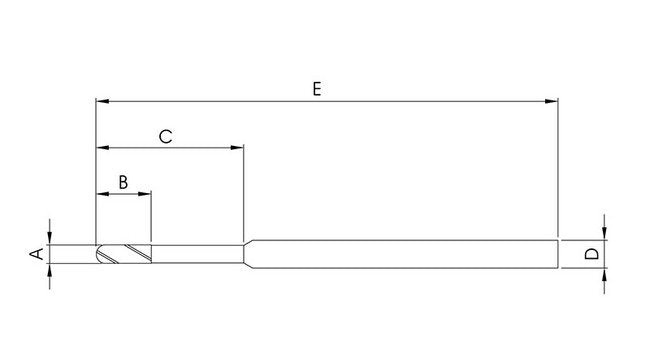

Specifications Cutting Diameter A

2 mm

Specifications Flute Length B

6 mm

Specifications Number Of Flute

Specifications Overall Length E

50 mm

Specifications Reach C

6 mm

Specifications Shank Diameter D

3 mm

Diamond Coated 4-Flute Ball Nose End Mill - 2mm
