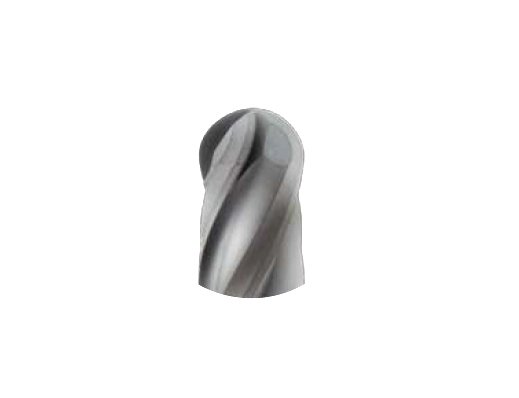

Diamond Coated 4-Flute Ball Nose End Mill

Name: Diamond Coated 4-Flute Ball Nose End Mill
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-66f342
Price: 49.99 USD
Availability: OutOfStock

SKU:DIA-66f342

Achieve precision and durability with our Diamond Coated Ball Nose End Mill, perfect for graphite, composite materials, and ceramics in various applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

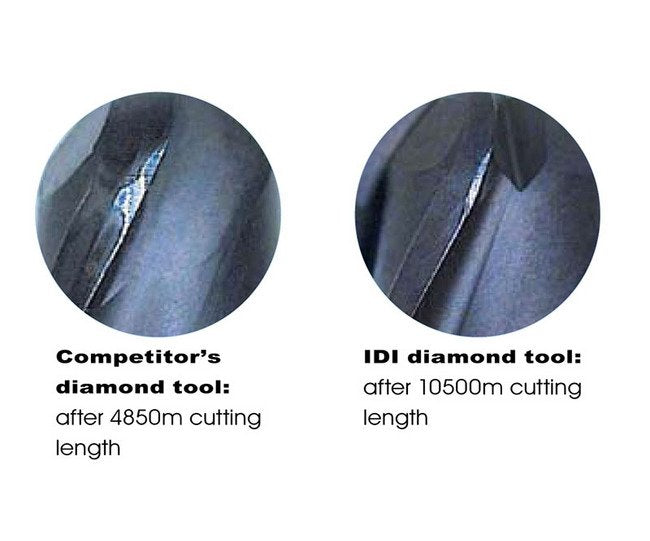

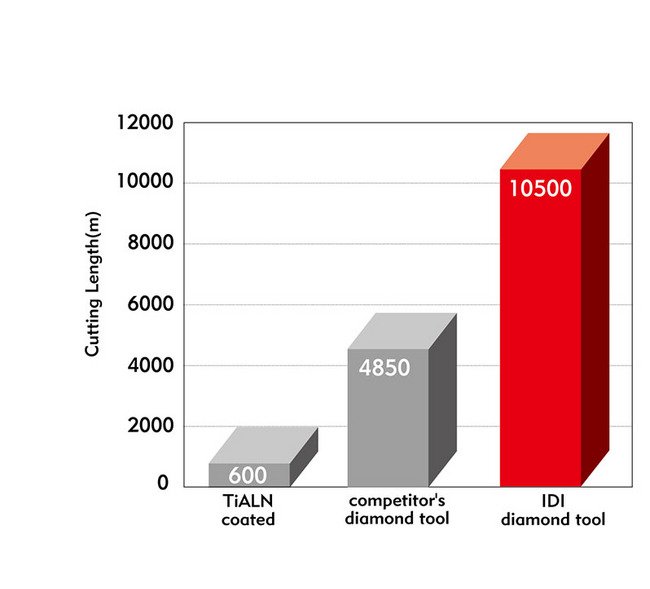

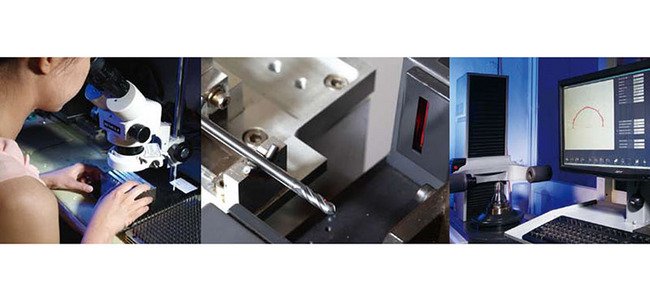

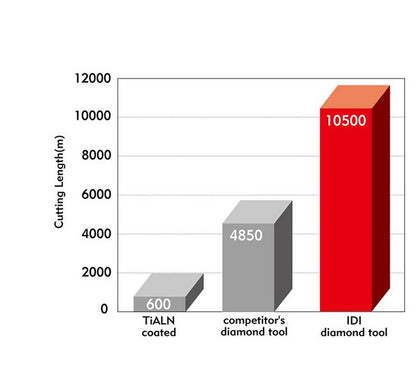

Experience superior cutting performance and extended tool life with our Diamond Coated 4-Flute Ball Nose End Mill. Specially sintered substrate, advanced tool geometry, and premium diamond coating ensure longevity up to 20 times that of uncoated tools. Our tools undergo meticulous inspection using top-notch equipment for precise dimensions and flawless quality. Ideal for graphite milling in semiconductor and die industries, as well as composite materials machining like CFRP and ceramics, this tool delivers exceptional results and reliability.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

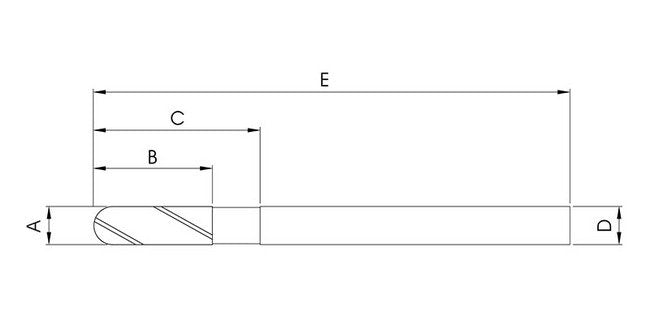

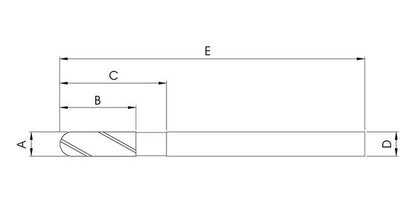

Specifications Cutting Diameter A

10 mm

Specifications Flute Length B

25 mm

Specifications Number Of Flute

Specifications Overall Length E

100 mm

Specifications Reach C

35 mm

Specifications Shank Diameter D

10 mm

Diamond Coated 4-Flute Ball Nose End Mill
