Diamond-Coated 4-Flute Ball Nose End Mill
Diamond-Coated 4-Flute Ball Nose End Mill
SKU:DIA-3e88fa
Achieve unparalleled cutting performance with IDI's Diamond-Coated 4-Flute Ball Nose End Mill. Ideal for graphite, composite materials, and ceramics machining.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Diamond-Coated 4-Flute Ball Nose End Mill
$59.99
Quantity: 1
Claim Your Seller Account
Diamond-Coated 4-Flute Ball Nose End Mill
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top cutting performance and unparalleled tool longevity with the Diamond-Coated 4-Flute Ball Nose End Mill from IDI. Crafted with a specially sintered substrate, advanced tool geometry, and superior diamond coating, this end mill offers exceptional durability, exceeding the lifespan of uncoated tools by 12-20 times. Utilizing precise equipment such as Zoller Measuring Machine and Mitutoyo Laser Scan Meter, each tool undergoes meticulous quality control ensuring perfection. Ideal for graphite milling in the semiconductor industry, die and mold industry, and more, as well as for composite materials like CFRP and ceramics, this end mill guarantees precision and reliability in every application.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

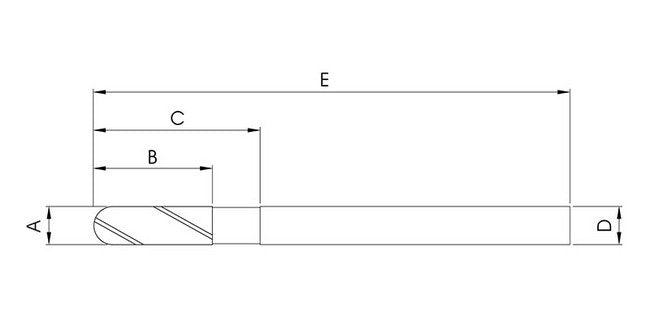

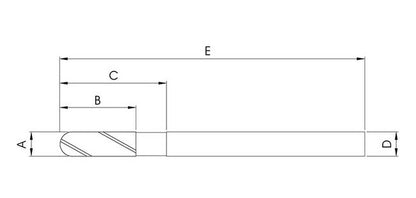

Specifications Cutting Diameter A
6 mm
Specifications Flute Length B
20 mm
Specifications Number Of Flute
4
Specifications Overall Length E
100 mm
Specifications Reach C
25 mm
Specifications Shank Diameter D
6 mm
