Diamond Coated 4-Flute Ball Nose End Mill - 6mm
Diamond Coated 4-Flute Ball Nose End Mill - 6mm
SKU:DIA-0ca2a3
Maximize cutting performance with our Diamond Coated 4-Flute Ball Nose End Mill - perfect for graphite and composite material machining.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Diamond Coated 4-Flute Ball Nose End Mill - 6mm
$59.99
Quantity: 1
Claim Your Seller Account
Diamond Coated 4-Flute Ball Nose End Mill - 6mm
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled cutting performance with our Diamond Coated 4-Flute Ball Nose End Mill. Featuring a specially sintered substrate, high-performance tool geometry, and exceptional diamond coating, this tool offers an extended lifespan of 12-20 times that of uncoated alternatives. Each tool undergoes meticulous inspection using advanced equipment to ensure precision and quality. Ideal for graphite milling in the semiconductor and die mold industries, as well as machining composite materials like CFRP and ceramics, this end mill guarantees superior results and efficiency.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

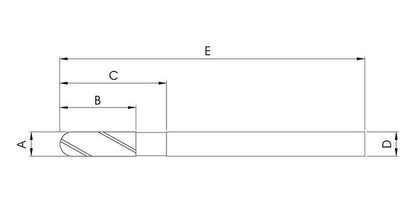

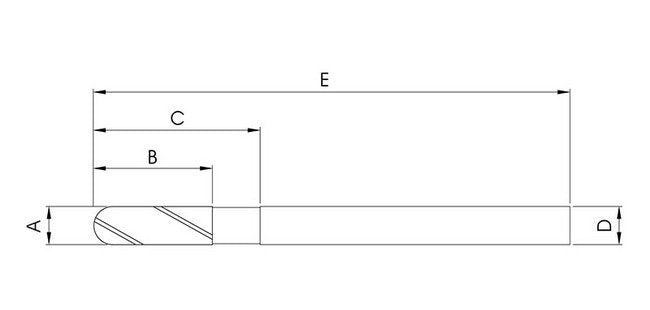

Specifications Cutting Diameter A
6 mm
Specifications Flute Length B
20 mm
Specifications Number Of Flute
4
Specifications Overall Length E
60 mm
Specifications Reach C
25 mm
Specifications Shank Diameter D
6 mm
