Diamond Coated 4-Flute Ball Nose End Mill - Graphite & Composite Materials
Diamond Coated 4-Flute Ball Nose End Mill - Graphite & Composite Materials
SKU:DIA-d07393
Achieve superior cutting performance and extended tool life with our Diamond-Coated 4-Flute End Mill for graphite & composites.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Coated 4-Flute Ball Nose End Mill - Graphite & Composite Materials
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Coated 4-Flute Ball Nose End Mill - Graphite & Composite Materials
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your precision machining capabilities with the IDI Diamond Coated 4-Flute Ball Nose End Mill. Engineered with a specially sintered substrate, high-performance tool geometry, and a durable diamond coating, this end mill delivers top cutting performance and exceptional longevity. Ideal for graphite milling in the semiconductor and die mold industries, as well as for machining composite materials like CFRP and ceramics, this tool surpasses uncoated alternatives with a tool life 12-20 times longer. Every tool undergoes meticulous inspection using advanced measuring equipment for unmatched precision and reliability.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

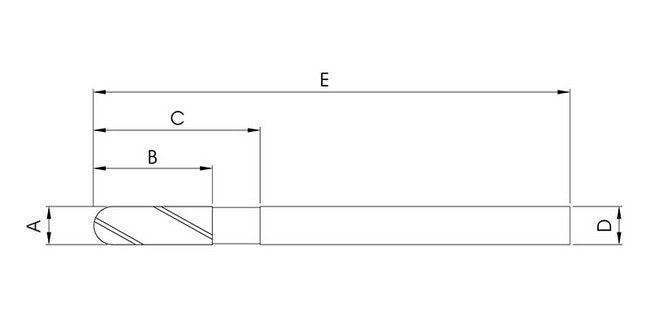

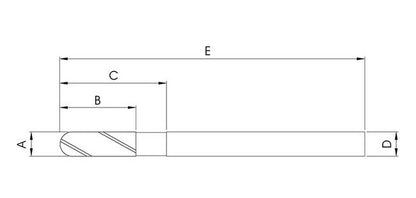

Specifications Cutting Diameter A
3 mm
Specifications Flute Length B
9 mm
Specifications Number Of Flute
4
Specifications Overall Length E
75 mm
Specifications Reach C
15 mm
Specifications Shank Diameter D
3 mm
