Diamond Coated 4-Flute Corner Radius End Mill - 10mm
Diamond Coated 4-Flute Corner Radius End Mill - 10mm
SKU:DIA-6203be
Enhance cutting precision with our IDI diamond coated 4-flute end mill. Superior longevity & performance for graphite and composite materials.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Coated 4-Flute Corner Radius End Mill - 10mm
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Coated 4-Flute Corner Radius End Mill - 10mm
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled cutting performance with the IDI diamond coated 4-flute corner radius end mill. Boasting a specially sintered substrate, high-performance tool geometry, and exceptional diamond coating, this tool offers superior longevity, exceeding uncoated tools by 12-20 times. Utilizing advanced equipment for precise control, each tool undergoes meticulous inspection to ensure perfection. Ideal for graphite milling in the semiconductor and die & mold industries as well as machining composite materials like CFRP and ceramics.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

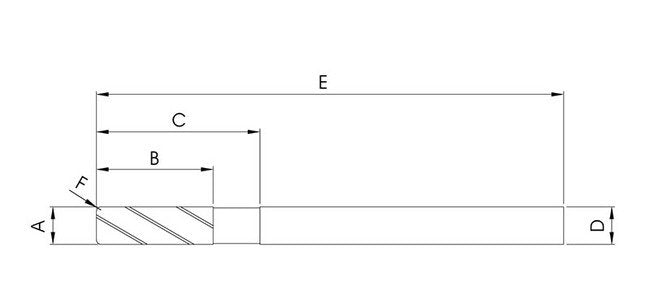

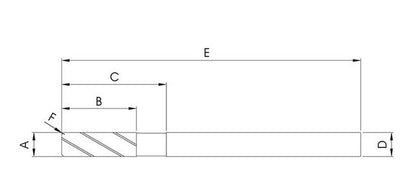

Specifications Corner Radius F
0.5/1 mm
Specifications Cutting Diameter A
10 mm
Specifications Flute Length B
25 mm
Specifications Number Of Flute
4
Specifications Overall Length E
150 mm
Specifications Reach C
35 mm
Specifications Shank Diameter D
10 mm
