Diamond-Coated 4-Flute Corner Radius End Mill 12mm

Diamond-Coated 4-Flute Corner Radius End Mill 12mm

DIA-081349

Achieve unmatched cutting performance with the Diamond-Coated 4-Flute Corner Radius End Mill. Superior durability and precision for industrial applications.

$49.99
$49.99
Sale

Initiate Order

Diamond-Coated 4-Flute Corner Radius End Mill 12mm

Diamond-Coated 4-Flute Corner Radius End Mill 12mm

$49.99

Quantity: 1

Claim Your Seller Account

Diamond-Coated 4-Flute Corner Radius End Mill 12mm

Diamond-Coated 4-Flute Corner Radius End Mill 12mm

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience unparalleled cutting performance and exceptional tool longevity with the IDI diamond-coated 4-Flute Corner Radius End Mill. Crafted with a specially sintered substrate, advanced tool geometry, and a superior diamond coating, this end mill delivers a tool lifespan surpassing uncoated counterparts by 12-20 times. Each tool undergoes meticulous inspection using state-of-the-art equipment like the Zoller Measuring Machine and Mitutoyo Laser Scan Meter to ensure precise dimensions and outstanding quality. Ideal for applications in graphite milling, composite materials, and ceramics machining, this end mill is a reliable choice for demanding industrial tasks.

Product Specifications

Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

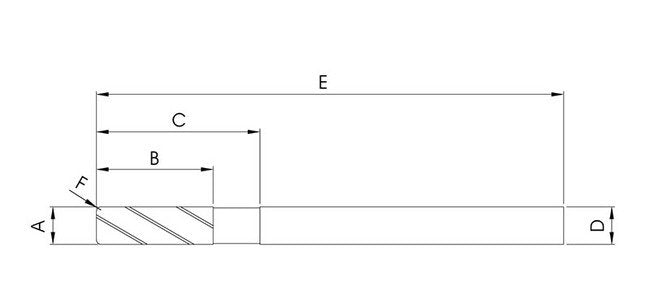

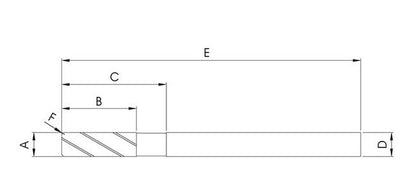

Specifications Corner Radius F
0.5/1 mm
Specifications Cutting Diameter A
12 mm
Specifications Flute Length B
25 mm
Specifications Number Of Flute
4
Specifications Overall Length E
100 mm
Specifications Reach C
35 mm
Specifications Shank Diameter D
12 mm
