Diamond Coated 4-Flute Corner Radius End Mill 2mm
Diamond Coated 4-Flute Corner Radius End Mill 2mm
SKU:DIA-a5b6d3
Maximize machining precision and durability with IDI's Diamond Coated 4-Flute End Mill. Ideal for graphite, CFRP, and ceramics.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Coated 4-Flute Corner Radius End Mill 2mm
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Coated 4-Flute Corner Radius End Mill 2mm
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining efficiency with the IDI Diamond Coated 4-Flute Corner Radius End Mill. With top cutting performance and a specially sintered substrate, this tool boasts an exceptional lifespan exceeding 12-20 times that of uncoated ones. Utilizing high performance tool geometry and a superior diamond coating, precision is guaranteed with tools individually checked under a microscope. Ideal for graphite milling in the semiconductor and die mold industries, as well as machining composite materials like CFRP and ceramics, this end mill ensures reliable performance and longevity.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

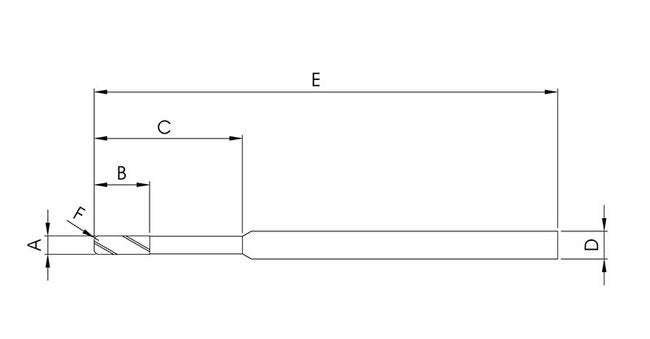

Specifications Corner Radius F
0.2/0.5 mm
Specifications Cutting Diameter A
2 mm
Specifications Flute Length B
6 mm
Specifications Number Of Flute
4
Specifications Overall Length E
50 mm
Specifications Reach C
16 mm
Specifications Shank Diameter D
3 mm
