Diamond Coated 4-Flute Corner Radius End Mill - 8mm

Name: Diamond Coated 4-Flute Corner Radius End Mill - 8mm
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-fb9661
Price: 49.99 USD
Availability: OutOfStock

SKU:DIA-fb9661

Achieve superior cutting performance with our Diamond Coated 4-Flute Corner Radius End Mill - 8mm. Ideal for graphite milling and composite materials. Precision guaranteed!

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience top cutting performance and exceptional durability with our Diamond Coated 4-Flute Corner Radius End Mill. Featuring a specially sintered substrate, high-performance tool geometry, and superb diamond coating, this tool surpasses uncoated ones with a tool life exceeding 12-20 times. Precisely crafted using Zoller Measuring Machine and Mitutoyo Laser Scan Meter for tool geometry control, every piece undergoes a meticulous 100% inspection under a microscope, ensuring perfection. Ideal for applications in graphite milling for the semiconductor industry, die and mold industry, composite materials like CFRP, ceramics in green state machining, and more.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

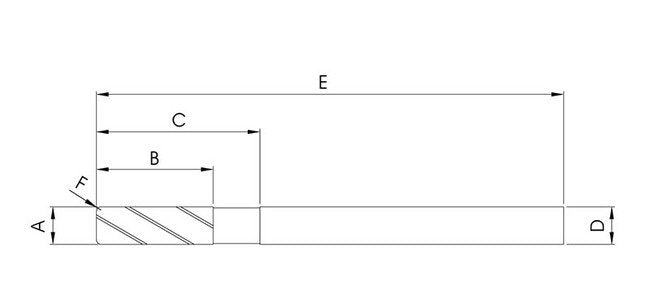

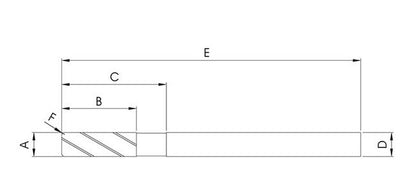

Specifications Corner Radius F

0.5 mm

Specifications Cutting Diameter A

8 mm

Specifications Flute Length B

25 mm

Specifications Number Of Flute

Specifications Overall Length E

100 mm

Specifications Reach C

35 mm

Specifications Shank Diameter D

8 mm

Diamond Coated 4-Flute Corner Radius End Mill - 8mm
