Diamond-Coated 4-Flute Corner Radius End Mill - Graphite & Composite Materials

Name: Diamond-Coated 4-Flute Corner Radius End Mill - Graphite & Composite Materials
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-a2b407
Price: 49.99 USD
Availability: OutOfStock

SKU:DIA-a2b407

Cutting-edge 4-flute corner radius end mill with diamond coating for superior tool life & precision. Ideal for graphite milling & composite materials.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

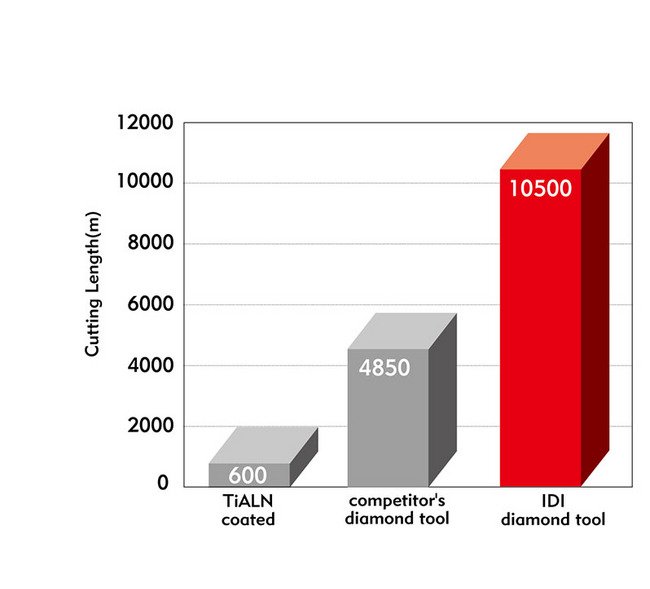

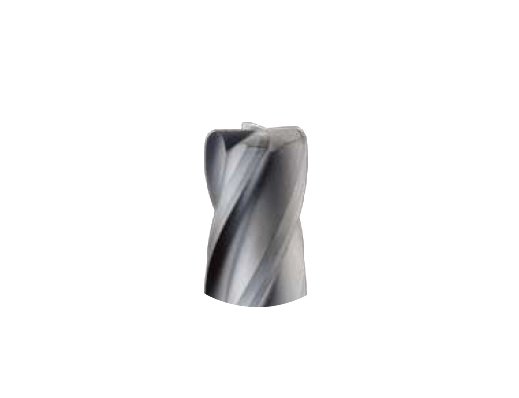

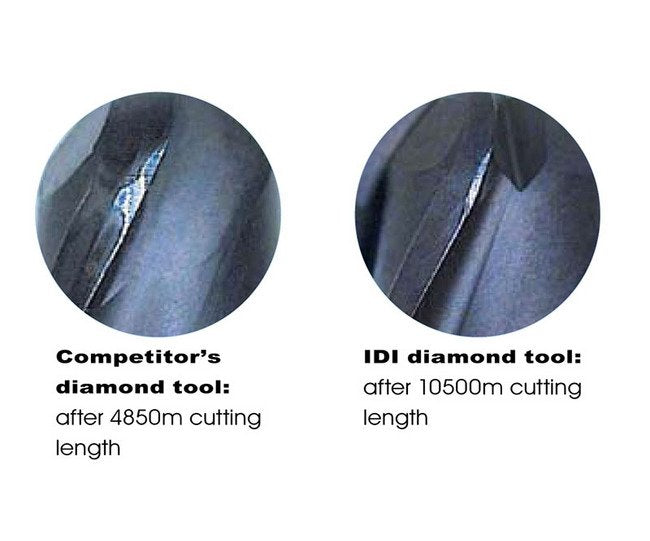

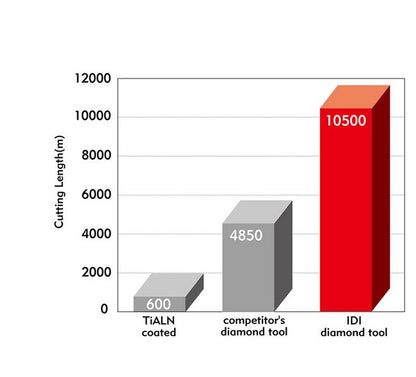

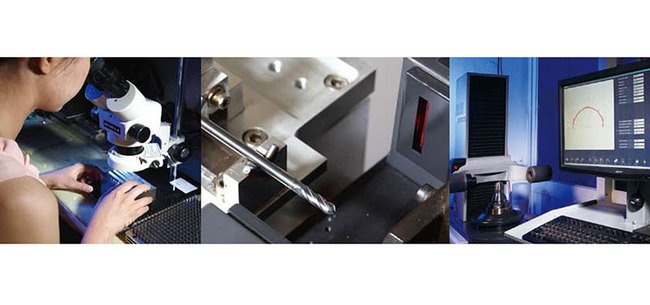

Experience exceptional cutting performance and extended tool life with the IDI Diamond-Coated 4-Flute Corner Radius End Mill. Crafted with a specially sintered substrate, high-performance tool geometry, and superior diamond coating, this tool surpasses uncoated alternatives by up to 20 times. Ideal for semiconductor, die and mold industry, and composite material applications. Each tool is meticulously inspected using Zoller Measuring Machine and Mitutoyo Laser Scan Meter for precision and quality assurance.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

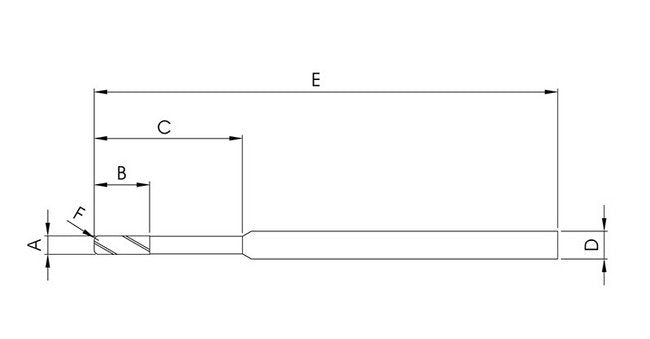

Specifications Corner Radius F

0.2/0.5 mm

Specifications Cutting Diameter A

2 mm

Specifications Flute Length B

6 mm

Specifications Number Of Flute

Specifications Overall Length E

50 mm

Specifications Reach C

20 mm

Specifications Shank Diameter D

3 mm
