Diamond Coated 4-Flute Square End Mill - 10mm
Diamond Coated 4-Flute Square End Mill - 10mm
SKU:DIA-fc27f8
Achieve superior cutting performance and extended tool life with the Diamond Coated 4-Flute Square End Mill - perfect for graphite milling and composite materials.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Diamond Coated 4-Flute Square End Mill - 10mm
$89.99
Quantity: 1
Claim Your Seller Account
Diamond Coated 4-Flute Square End Mill - 10mm
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Coated 4-Flute Square End Mill by IDI delivers exceptional cutting performance and unmatched tool longevity, exceeding uncoated tools by 12-20 times. Crafted with a specially sintered substrate, high-performance tool geometry, and superior diamond coating, this end mill undergoes rigorous quality control using Zoller Measuring Machine and Mitutoyo Laser Scan Meter. Ideal for graphite milling in the semiconductor and die mold industries, as well as machining composite materials like CFRP and ceramics. With precise dimensions and excellent durability, this tool ensures top-notch performance and reliability.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

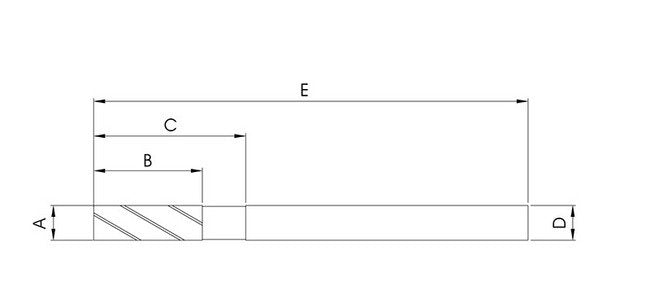

Specifications Cutting Diameter A
10 mm
Specifications Flute Length B
25 mm
Specifications Number Of Flute
4
Specifications Overall Length E
150 mm
Specifications Reach C
35 mm
Specifications Shank Diameter D
10 mm
