Diamond-Coated 4-Flute Square End Mill - 12mm
Diamond-Coated 4-Flute Square End Mill - 12mm
SKU:DIA-4cc3a3
Achieve superior cutting performance with the IDI Diamond-Coated 4-Flute Square End Mill - 12mm. Unmatched durability and precision engineered for excellence.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Diamond-Coated 4-Flute Square End Mill - 12mm
$59.99
Quantity: 1
Claim Your Seller Account
Diamond-Coated 4-Flute Square End Mill - 12mm
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining capabilities with the IDI Diamond-Coated 4-Flute Square End Mill. This tool delivers top cutting performance and unmatched durability, with a tool life that can exceed 12-20 times that of uncoated models. Precision-engineered with a specially sintered substrate, high-performance tool geometry, and excellent diamond coating, this end mill undergoes rigorous quality control using Zoller Measuring Machine and Mitutoyo Laser Scan Meter. Ideal for graphite, composite materials, and ceramics machining applications, ensuring exceptional results under demanding conditions.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

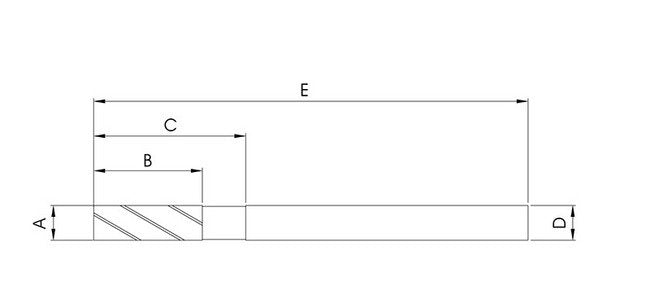

Specifications Cutting Diameter A
12 mm
Specifications Flute Length B
25 mm
Specifications Number Of Flute
4
Specifications Overall Length E
150 mm
Specifications Reach C
35 mm
Specifications Shank Diameter D
12 mm
