Diamond Coated 4-Flute Square End Mill - 12mm

Name: Diamond Coated 4-Flute Square End Mill - 12mm
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-5d955d
Price: 59.99 USD
Availability: OutOfStock

SKU:DIA-5d955d

Achieve cutting-edge precision and extended tool life with our Diamond Coated 4-Flute End Mill - ideal for graphite, composites, and ceramics.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Unlock top cutting performance and superior durability with the Diamond Coated 4-Flute Square End Mill. Featuring a specially sintered substrate, advanced tool geometry, and premium diamond coating, this tool surpasses uncoated alternatives with a lifespan 12-20 times longer. Rigorously inspected with high-tech equipment for precision, each tool guarantees perfection for demanding applications in graphite milling, composite materials like CFRP and ceramics machining.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

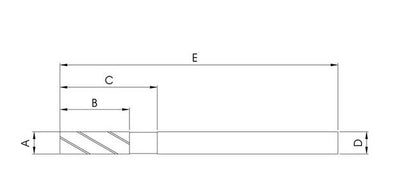

Specifications Cutting Diameter A

12 mm

Specifications Flute Length B

25 mm

Specifications Number Of Flute

Specifications Overall Length E

100 mm

Specifications Reach C

35 mm

Specifications Shank Diameter D

12 mm
