Diamond Coated 4-Flute Square End Mill - 2mm

Name: Diamond Coated 4-Flute Square End Mill - 2mm
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-4c8fb0
Price: 49.99 USD
Availability: OutOfStock

SKU:DIA-4c8fb0

Maximize efficiency with IDI Diamond Coated 4-Flute Square End Mill - top cutting performance & extended tool life for industry precision.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience top cutting performance and extended tool life with the IDI Diamond Coated 4-Flute Square End Mill. Specially sintered substrate, high-performance tool geometry, and superior diamond coating ensure longevity up to 12-20 times longer than uncoated tools. Rigorously inspected with advanced equipment for precision control, this tool is ideal for graphite milling in semiconductor and die industries, as well as composite materials like CFRP and ceramics. Maximize efficiency and accuracy with this premium end mill.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

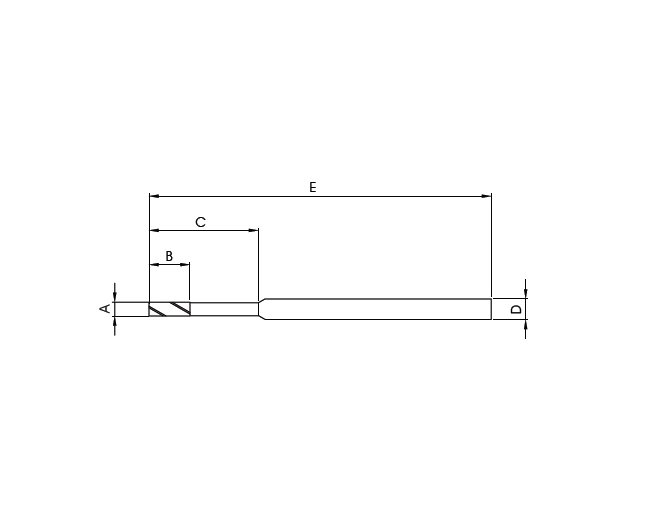

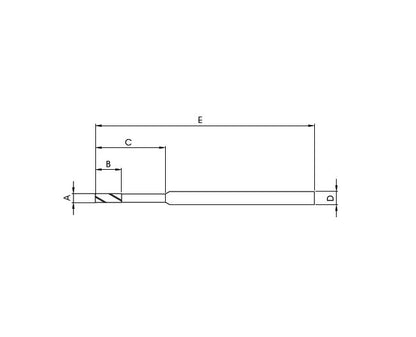

Specifications Cutting Diameter A

2 mm

Specifications Flute Length B

6 mm

Specifications Number Of Flute

Specifications Overall Length E

50 mm

Specifications Reach C

10 mm

Specifications Shank Diameter D

3 mm
