Diamond F5 Chipbreaker w/ ISO Hole, 0.205/0.211 in
Diamond F5 Chipbreaker w/ ISO Hole, 0.205/0.211 in
SKU:TUR-37ddd8
High-performance Diamond F5 Chipbreaker for precise finishing operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond F5 Chipbreaker w/ ISO Hole, 0.205/0.211 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond F5 Chipbreaker w/ ISO Hole, 0.205/0.211 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

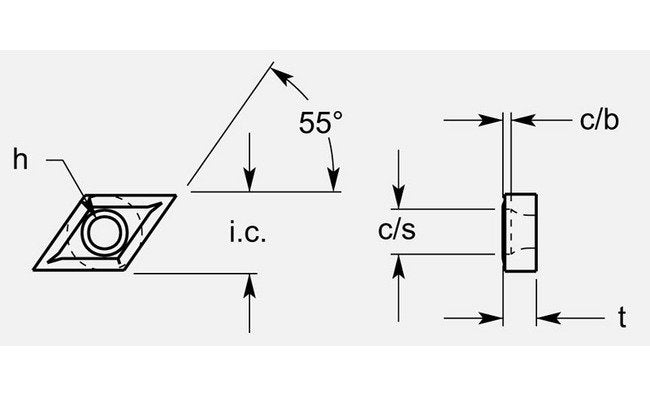

The Diamond Negative F5 Chipbreaker with ISO Style Hole boasts a thickness of 0.205 / 0.211 in, an Inscribed Circle of 0.514/0.520 in, and an Angle of 55°. Designed for Finishing operations, this chipbreaker features a precise hole diameter of 0.213 / 0.219 in, ensuring optimal performance. With dimensions of 0.292 / 0.298 in for C/S and CB of 0.037 / 0.043 in, this grade is readily available for immediate use. Experience superior quality and efficiency with this chipbreaker that meets strict industry standards.
Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
55 º
Dimensional Specification Cb
0.037 / 0.043 in
Dimensional Specification Cs
0.292 / 0.298 in
Dimensional Specification Hole
0.213 / 0.219 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Thickness T
0.205 / 0.211 in
Grade Availability Grade Availability
In Stock
