Diamond Negative Chipbreaker with Hole, 0.189/0.195 in
Diamond Negative Chipbreaker with Hole, 0.189/0.195 in
SKU:TUR-f85ac1
High-quality Diamond Negative Chipbreaker with precise 0.189-0.195 in thickness, 80° angle, and customizable grades.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Negative Chipbreaker with Hole, 0.189/0.195 in
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Negative Chipbreaker with Hole, 0.189/0.195 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Negative Chipbreaker with Hole features a precision thickness of 0.189/0.195 inches, an Inscribed Circle of 0.497/0.503 inches, and an 80° Angle for optimum cutting performance. With a radius of 1/32 inch and a hole diameter of 0.201/0.205 inches, this chipbreaker ensures superior turning capabilities. Grade availability can be customized upon request to meet your specific needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

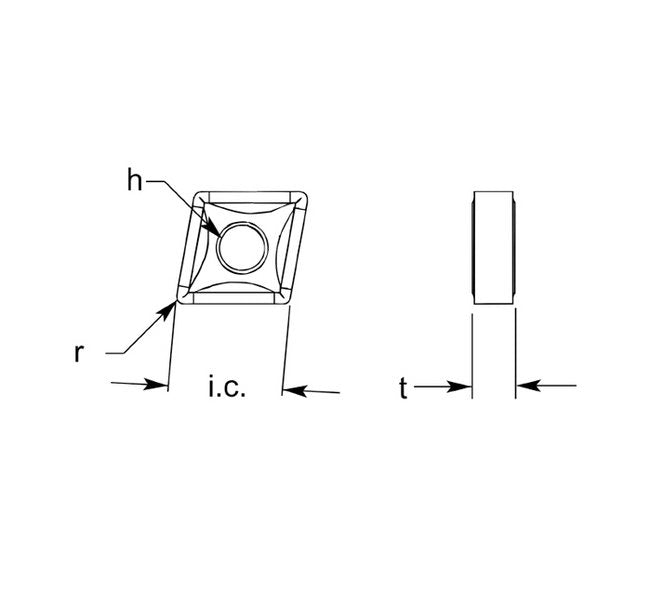

Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.201 / 0.205 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.189 / 0.195 in
Grade Availability Grade Availability
Available on Request
