Diamond Negative F1 Chipbreaker with Hole - 0.191 / 0.197 in
Diamond Negative F1 Chipbreaker with Hole - 0.191 / 0.197 in
SKU:TUR-6fdc45
Premium Diamond Negative F1 Chipbreaker for precise finishing. Thickness: 0.191-0.197 in. Hole: 0.148-0.152 in.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative F1 Chipbreaker with Hole - 0.191 / 0.197 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F1 Chipbreaker with Hole - 0.191 / 0.197 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Utility Diamond Negative F1 Chipbreaker with Hole is a top-of-the-line turning blank designed for precision finishing operations. With a thickness of 0.191 to 0.197 inches, an Inscribed Circle of 0.373 to 0.377 inches, and a precise 35-degree Angle, this chipbreaker ensures optimal performance in machining tasks. The incorporated hole of 0.148 to 0.152 inches adds versatility and facilitates efficient chip evacuation. Grade availability is customizable upon request, meeting the highest industry standards for quality and performance.
Product Specifications
Classifications Operation
Finishing

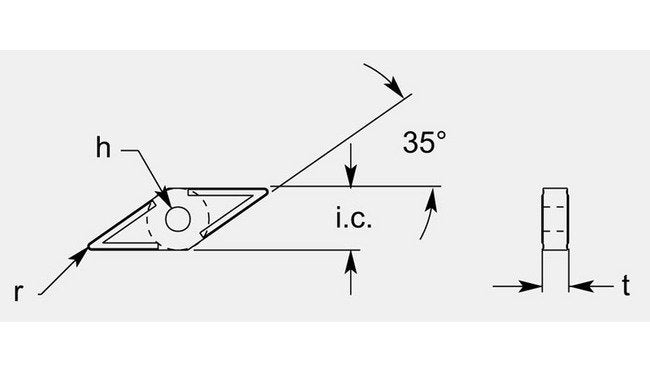

Dimensional Specification Angle A
35 º
Dimensional Specification Hole
0.148 / 0.152 in
Dimensional Specification Inscribed Circle Ic
0.373/0.377 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.191 / 0.197 in
Grade Availability Grade Availability
Available on Request
