Diamond Negative F1 Chipbreaker with Hole, 0.254 / 0.260 in

Diamond Negative F1 Chipbreaker with Hole, 0.254 / 0.260 in

SKU:TUR-6255dc

High-performing Diamond Negative F1 Chipbreaker for precision turning. Customizable grade availability.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Diamond Negative F1 Chipbreaker with Hole, 0.254 / 0.260 in

Diamond Negative F1 Chipbreaker with Hole, 0.254 / 0.260 in

$39.99

Quantity: 1

Claim Your Seller Account

Diamond Negative F1 Chipbreaker with Hole, 0.254 / 0.260 in

Diamond Negative F1 Chipbreaker with Hole, 0.254 / 0.260 in

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Diamond Negative F1 Chipbreaker with Hole offers precision and durability for turning applications. With a thickness of 0.254 / 0.260 in, an Inscribed Circle of 0.497/0.503 in, and a 55-degree Angle, it excels in finishing operations. Grade availability is customizable to meet specific requirements. This chipbreaker guarantees high performance and reliability, making it ideal for industrial and institutional machining needs.

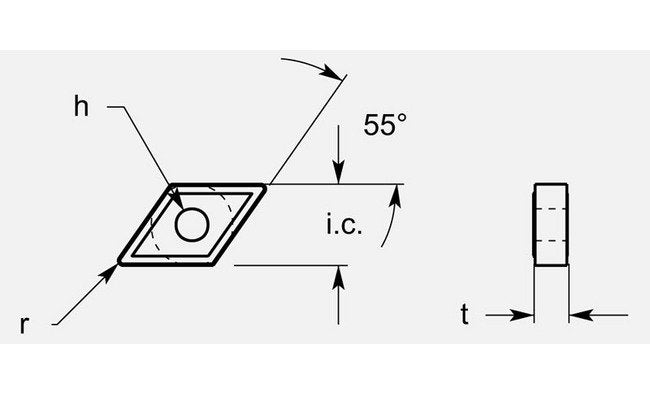

Product Specifications

Classifications Operation
Finishing
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.254 / 0.260 in
Grade Availability Grade Availability
Available on Request
