Diamond Negative F1 Chipbreaker with Hole, Thickness 0.191/0.197 in
Diamond Negative F1 Chipbreaker with Hole, Thickness 0.191/0.197 in
SKU:TUR-8509df
Achieve precision finishing with the Utility Diamond Negative F1 Chipbreaker. Thickness: 0.191/0.197 in, Hole: 0.200/0.206 in, Grade options available.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Negative F1 Chipbreaker with Hole, Thickness 0.191/0.197 in
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F1 Chipbreaker with Hole, Thickness 0.191/0.197 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Utility Diamond Negative F1 Chipbreaker with Hole is a precision-engineered turning blank designed for high-performance finishing operations. With a thickness range of 0.191 to 0.197 inches, an inscribed circle of 0.497 to 0.503 inches, and a unique radius of 1/32 inch, this chipbreaker ensures exceptional results. It features a 55-degree angle, precise hole dimensions of 0.200 to 0.206 inches, and is available in various grades upon request, providing versatility and efficiency for turning applications. This chipbreaker guarantees superior performance, durability, and consistency, meeting the stringent standards of industrial and institutional procurement environments.
Product Specifications
Classifications Operation
Finishing

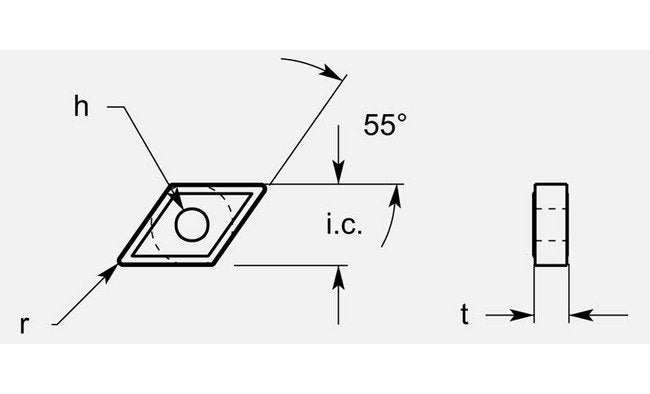

Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.191 / 0.197 in
Grade Availability Grade Availability
Available on Request
