Diamond Negative F1 Chipbreaker with Hole, Thickness 0.193 / 0.199 in
Diamond Negative F1 Chipbreaker with Hole, Thickness 0.193 / 0.199 in
SKU:TUR-065bc3
Enhance your turning operations with the precision-engineered Diamond Negative F1 Chipbreaker. Thickness: 0.193 / 0.199 in. Grade customization available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative F1 Chipbreaker with Hole, Thickness 0.193 / 0.199 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F1 Chipbreaker with Hole, Thickness 0.193 / 0.199 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

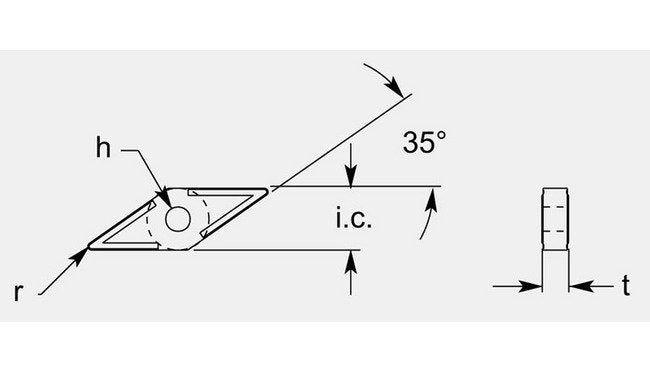

The Diamond Negative F1 Chipbreaker with Hole is a premium turning blank designed for precision finishing operations. With a Thickness of 0.193 / 0.199 in, an Inscribed Circle of 0.373/0.377 in, a Radius of 1/32 in, and an Angle of 35 degrees, this chipbreaker ensures exceptional performance. The precisely engineered hole of 0.148 / 0.152 in further enhances its functionality. Grade Availability is customizable upon request, making it suitable for diverse industrial applications.
Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
35 º
Dimensional Specification Hole
0.148 / 0.152 in
Dimensional Specification Inscribed Circle Ic
0.373/0.377 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.193 / 0.199 in
Grade Availability Grade Availability
Available on Request
