Diamond Negative F1 Chipbreaker with Hole, Thickness 0.254/0.260 in
Diamond Negative F1 Chipbreaker with Hole, Thickness 0.254/0.260 in
SKU:TUR-56deca
Precision Diamond Negative Chipbreaker for impeccable turning results. Thickness: 0.254/0.260 in. Ideal for finishing operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative F1 Chipbreaker with Hole, Thickness 0.254/0.260 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F1 Chipbreaker with Hole, Thickness 0.254/0.260 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

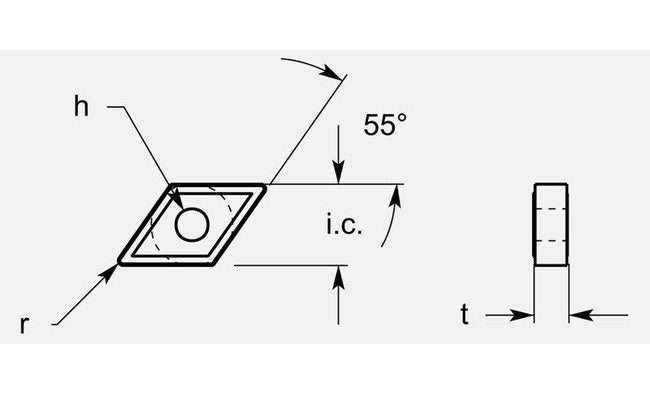

The Diamond Negative F1 Chipbreaker with Hole is designed for precise turning operations, featuring a thickness of 0.254/0.260 inches. With an inscribed circle of 0.497/0.503 inches, radius of 1/32 inch, and a 55-degree angle, this chipbreaker excels in finishing operations. The integrated hole measuring 0.200/0.206 inches enhances coolant flow, ensuring efficient machining processes. Available on request, this chipbreaker meets the highest standards of quality and accuracy for turning applications.
Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.254 / 0.260 in
Grade Availability Grade Availability
Available on Request
