Diamond Negative F1 Chipbreaker with Hole, Thickness 0.259-0.265 in
Diamond Negative F1 Chipbreaker with Hole, Thickness 0.259-0.265 in
SKU:TUR-c393aa
Precision-engineered Diamond Negative F1 Chipbreaker for high-quality finishing operations.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Diamond Negative F1 Chipbreaker with Hole, Thickness 0.259-0.265 in
$49.99
Quantity: 1
Claim Your Seller Account
Diamond Negative F1 Chipbreaker with Hole, Thickness 0.259-0.265 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

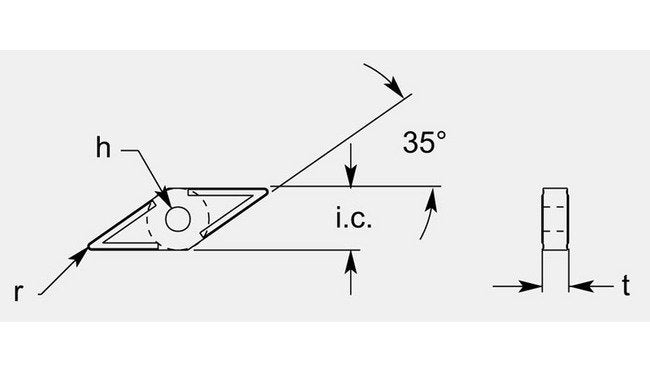

The Diamond Negative F1 Chipbreaker with Hole is a precision-engineered turning blank designed for finishing operations. With a thickness range of 0.259-0.265 inches, an Inscribed Circle of 0.497-0.503 inches, and a Radius of 1/32 inch, this chipbreaker ensures high-quality performance. Its 35-degree Angle and 0.200-0.206 inch hole make it ideal for precise turning applications. Grade availability can be customized upon request to meet specific operational needs.
Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
35 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.259 / 0.265 in
Grade Availability Grade Availability
Available on Request
